PM230 Power Module, IP55
Hardware Installation Manual, 12/2016, A5E35319202B AB
19
Installing/mounting
4
4.1
Installation conditions
General installation conditions
When installing the Power Modules, carefully observe the following sections in
Chapter
Technical data (Page 47) in order to guarantee reliable, continuous and
disturbance-free operation.
● Cable cross-sections and tightening torques
● Electromagnetic compatibility
● Ambient conditions
● General technical specifications
● The permissible fuses, power loss and the required cooling air quantities are listed in the
specific technical specifications.
The EMC-compliant connection is described in Section:
EMC compliant installation of a machine or system (Page 21).
The Power Module is intended for wall mounting. If the
Power Module is not mounted on a wall, the rear panel of
the heat sink must be covered with a plate.

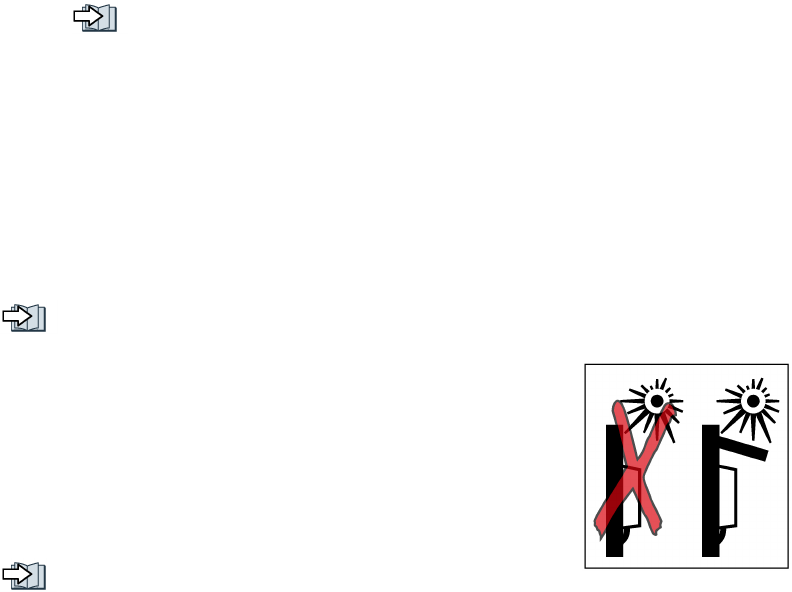

Do not expose the inverter to direct sunlight.
To comply with protection class IP55,
either an operator
panel or a dummy cover is required for operating the inver
t-
er.
"Installing the operator panel or dummy cover
(Page
28)".
