Installation Instructions

A6V101004423_enUS_b
6
10. For FC360 panels, install the power supply onto the adapter plate as shown in Figure 9.
FP2011-U1
POWER SUPPLY
(170w)
BATTERIES UP TO
12 AH

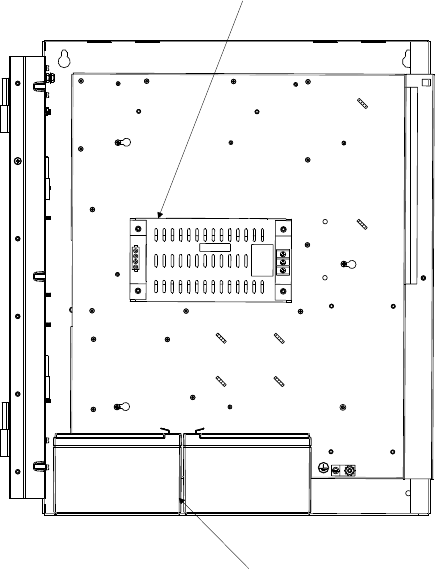

Figure 9: Mounting the FC360 Modules onto the Adapter Plate
11. Refer to the panel’s respective installation instructions for proper commission and operation
procedure.
