7. For FC360 panels, install the FCM901-U2/-U3 into the inner door as shown in Figure 6.
USE THE SCREWS
PROVIDED
WITH THE MODULE (4)
PLACES
MAIN BOARD WITH
THE OPERATING
UNIT

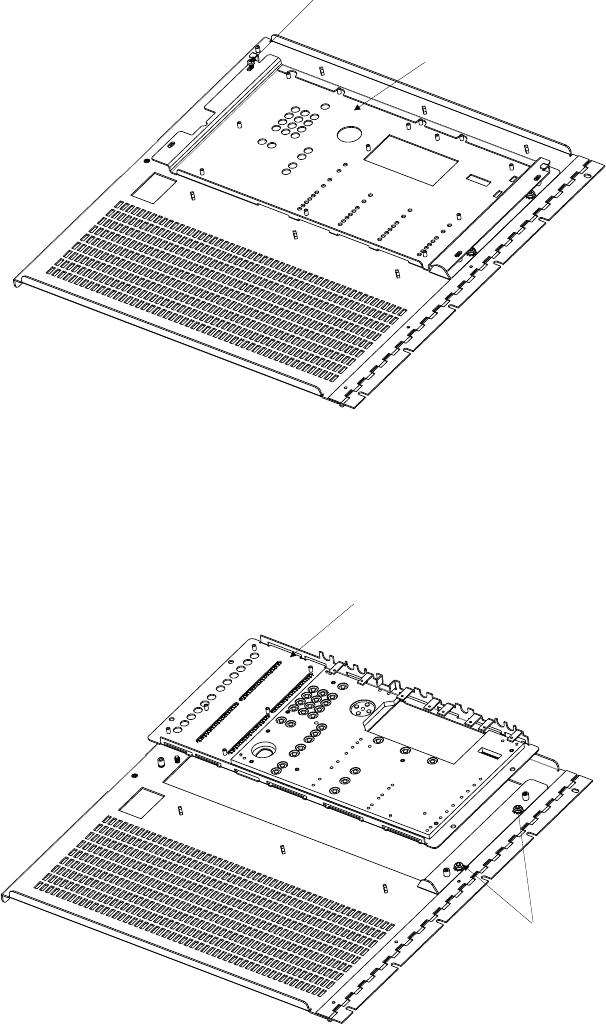

Figure 6: Mounting the FCM901-U2 on the Inner Door
8. For FS20 panels, install the FCM2018-U2/-U3, FCM2019-U2/-U3 into the inner door as shown
in Figure 7.
FCM2018-U2
REMOVE THE
TWO HEX NUTS
AND DISCARD
THE BRACKET
Figure 7: Mounting the FCM2018-U2 on the Inner Door
