2. Once the outer and inner doors are removed, insure that the back box is free of all wiring
connections. Remove all the grounding connectors on the enclosure and all modules. Save all
screw and nuts to mount the new adapters.

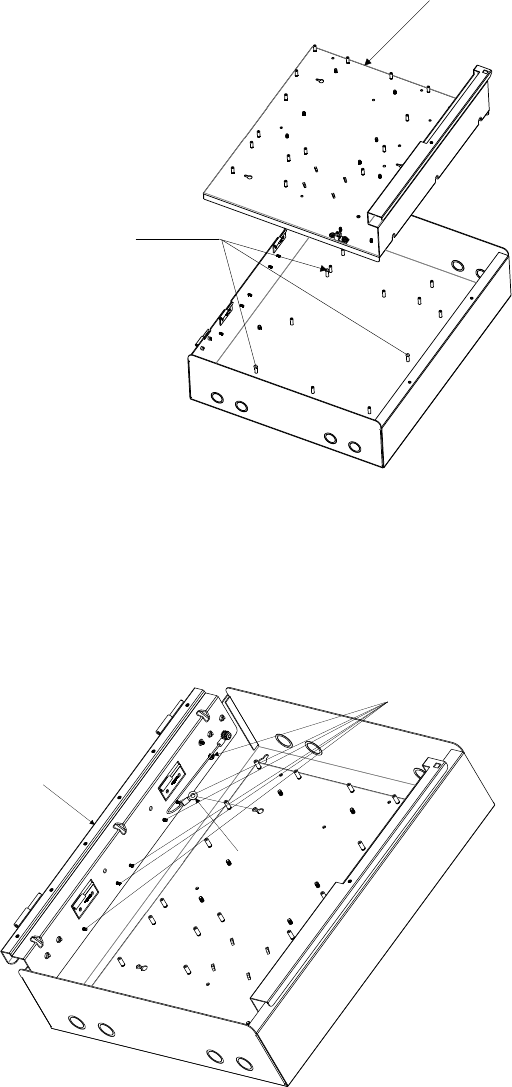

3. Mount the (3) screws for the adapter plate as shown in Figure 2. Secure the adapter plate with
the additional (7) screws.
ADAPTER
PLATE
INSERT (3)
SCREWS AS SHOWN
AND SLIDE ADAPTER
PLATE IN PLACE
Figure 2: Mounting Adapter Plate inside the Back Box
4. Install the left bracket as shown in Figure 3, and then connect the earth ground to the adapter
plate.
LEFT
BRACKET
6-32 HEX LOCK
(6) NUT PLACES
SECURE
EARTH
GROUND
AS SHOWN
Figure 3: Mounting the Left Bracket
