BSG-U1
Technical data
Nominal resistance range: 2000 ... 3000 Ω
Protection class III (2)
Protection standard (built-in) IP42 to IEC529
Ambient temperature:
Operation 0 ... 55 °C
Storage –25 ... 70 °C
Ambient humidity < 95 %rh, non-condensing
Max. length of cable
between BSG-U1 and controller 1.0 mm
2
CU: 110 m
1.5 mm
2
CU: 170 m
Principle of operation
The BSG-U1 universal setpoint adjuster is a passive (variable resistance) device which
allows:
– Setpoint adjustment according to the particular range and physical units
required, as scaled within the INTEGRAL RS controllers (RSM, RSC, RSA).
– ± 3.5 °C adjustment of the nominal setpoint value as programmed into the
PRONTO IRC controllers PRFB and PRFB-D.
Construction
Multi-part plastic housing, comprising:
– Cover plate and rotary knob with (replaceable) scale plate
– Electronic printed circuit board with potentiometer and connection terminals.
Mounting instructions are supplied with the device.
BSG-U1 scale plates
1
987
BSG-U1

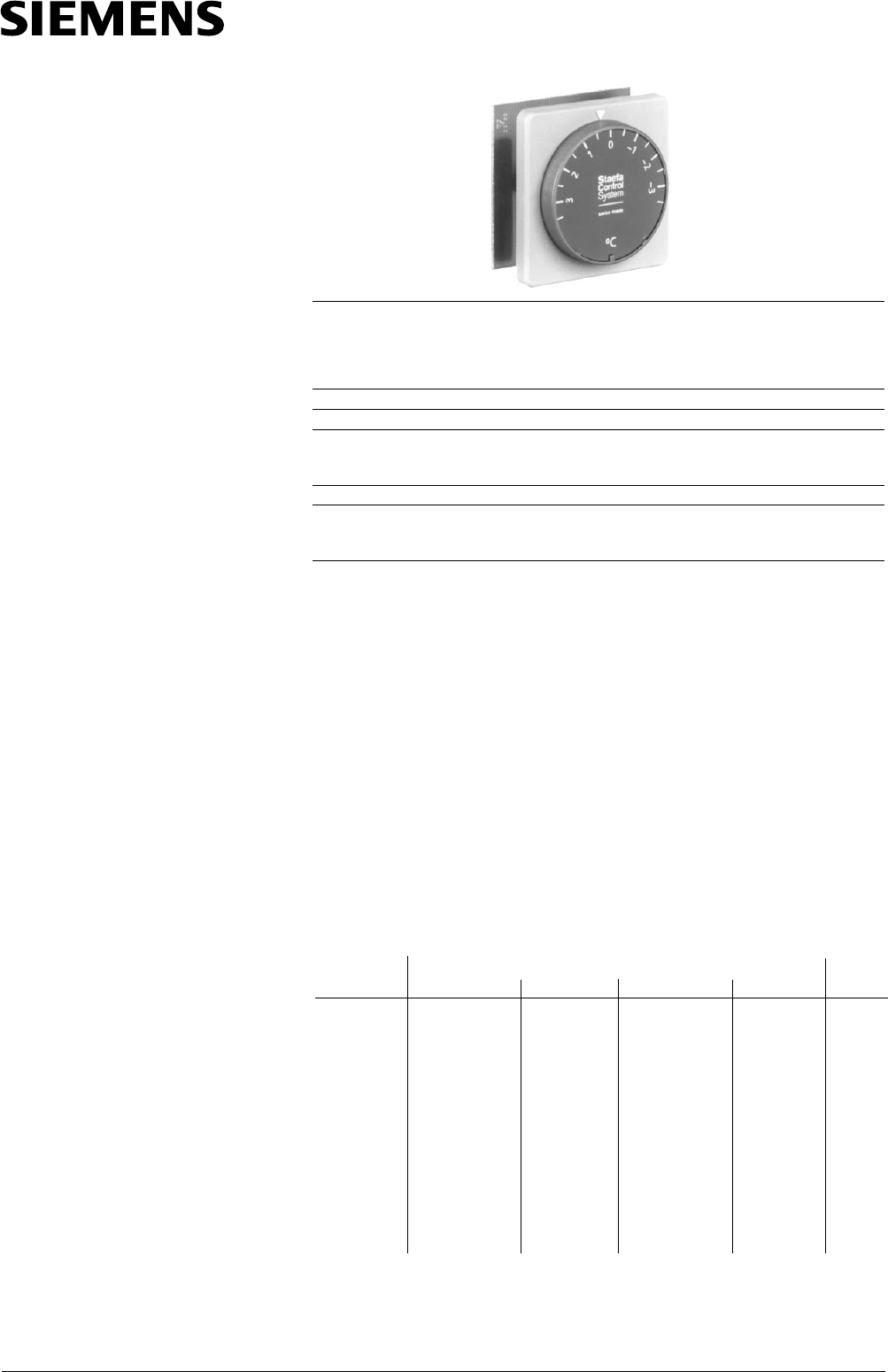

Universal setpoint adjuster
Application
Used for setpoint adjustment in the
INTEGRAL RS (universal input) and
PRONTO IRC PRFB, PRFB-D control sys-
tems.
Scale Range
Phys. variable Side 1 Ω Side 2 Ω
Temperature –3.5 ... 3.5 °C 2061 ... 2901 0 ... 200 K 2013 ... 2949 22782*
Temperature –20 ... 40 °C 2013 ... 2949 0 ... 100 % 2013 ... 2949 22803*
Temperature 16 ... 32 °C 2013 ... 2949 20 ... 120 °C 2013 ... 2949 22805*
Humidity 0 ... 100 %rh 2013 ... 2949 4.5 ... 24 g/kg 2013 ... 2949 22827*
Air quality 0 ... 10 AQU 2013 ... 2949 0 ... 2000 ppm 2013 ... 2949 22837*
Pressure 0 ... 100 Pa 2013 ... 2949 0 ... 300 Pa 2013 ... 2949 22844**
Pressure 0 ... 1000 Pa 2013 ... 2949 0 ... 40 bar 2013 ... 2949 22815**
Pressure 0 ... 1 bar 2013 ... 2949 0 ... 2 bar 2013 ... 2949 22842**
Pressure 0 ... 5 bar 2013 ... 2949 0 ... 10 bar 2013 ... 2949 23003**
Pressure 0 ... 16 bar 2013 ... 2949 0 ... 25 bar 2013 ... 2949 23004**
Pressure 0 ... 10 kPa 2013 ... 2949 0 ... 20 kPa 2013 ... 2949 23005**
Pressure 0 ... 50 kPa 2013 ... 2949 0 ... 100 kPa 2013 ... 2949 23006**
Air velocity/
Solar rad. 0 ... 15 m/s 2013 ... 2949 0 ... 2000 W/m
2
2013 ... 2949 22843**
Order
No.
* enclosed or fitted
** must be ordered separately
Ordering example:
BSG-U1 (Universal setpoint adjuster)
23003 (0 ...10 bar scale)
