User Manual

CA1N1988E / 11.1998 Siemens Building Technologies
2/2 Landis & Staefa Division

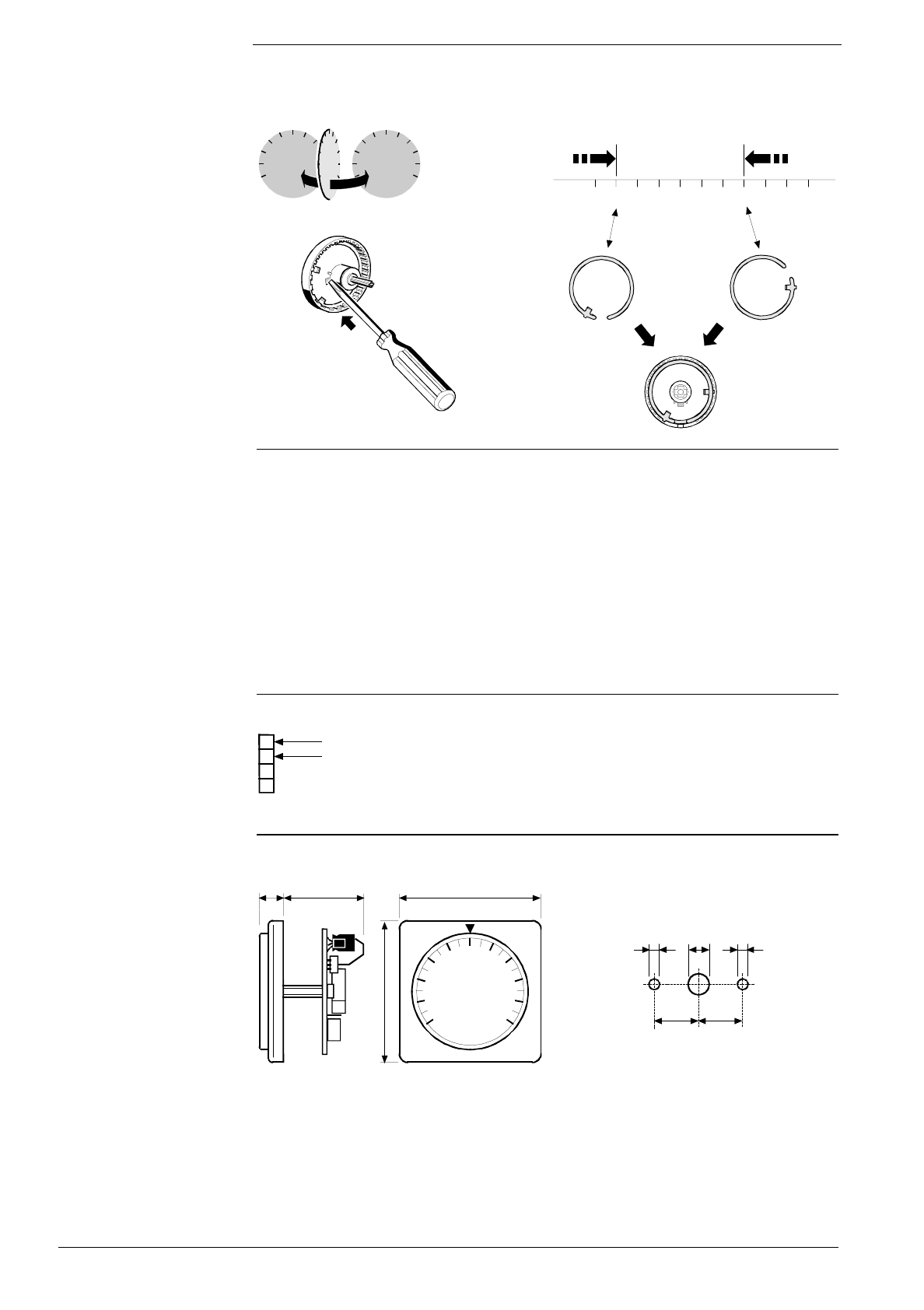

Reverse the scale plate of the rotary
knob if necessary, so that the side with
°C or the other side with °F is visible.
920928
100
80
60
40
20
0
100
80
60
40
20
0
°C
100
8
0
60
4
0
20
0
The adjustment range can be limited
mechanically by repositioning the two rings
on the back of the rotary knob (see
mounting instructions).
40587 A
28 26 24 22 20 18 16 14 12 1030
Resistance range See resistance table T1 on sheet 1713
Protection class III
Protection standard (when installed) IP42 to IEC529
Ambient temperature:
Operation 0 ... 55 °C
Storage / Transport – 25 ... 70 °C
Ambient humidity < 95 %rh, non-condensing
Max. cable length between BSG-T... and controller
with 0.25 mm
2
Cu 40 m
with 0.50 mm
2
Cu 75 m
with 1.0 mm
2
Cu 110 m
40588
1
2
3
4
All dimensions in mm
940227 A
10 31 48
48
Drilling diagram
930180 A
14
14
ø 7ø 3,5 ø 3,5
Commissioning
notes
Technical data
Connection
terminals
Dimensions
1998 Siemens Building Technologies Ltd.
