Data sheet 6XV1830-0PH10

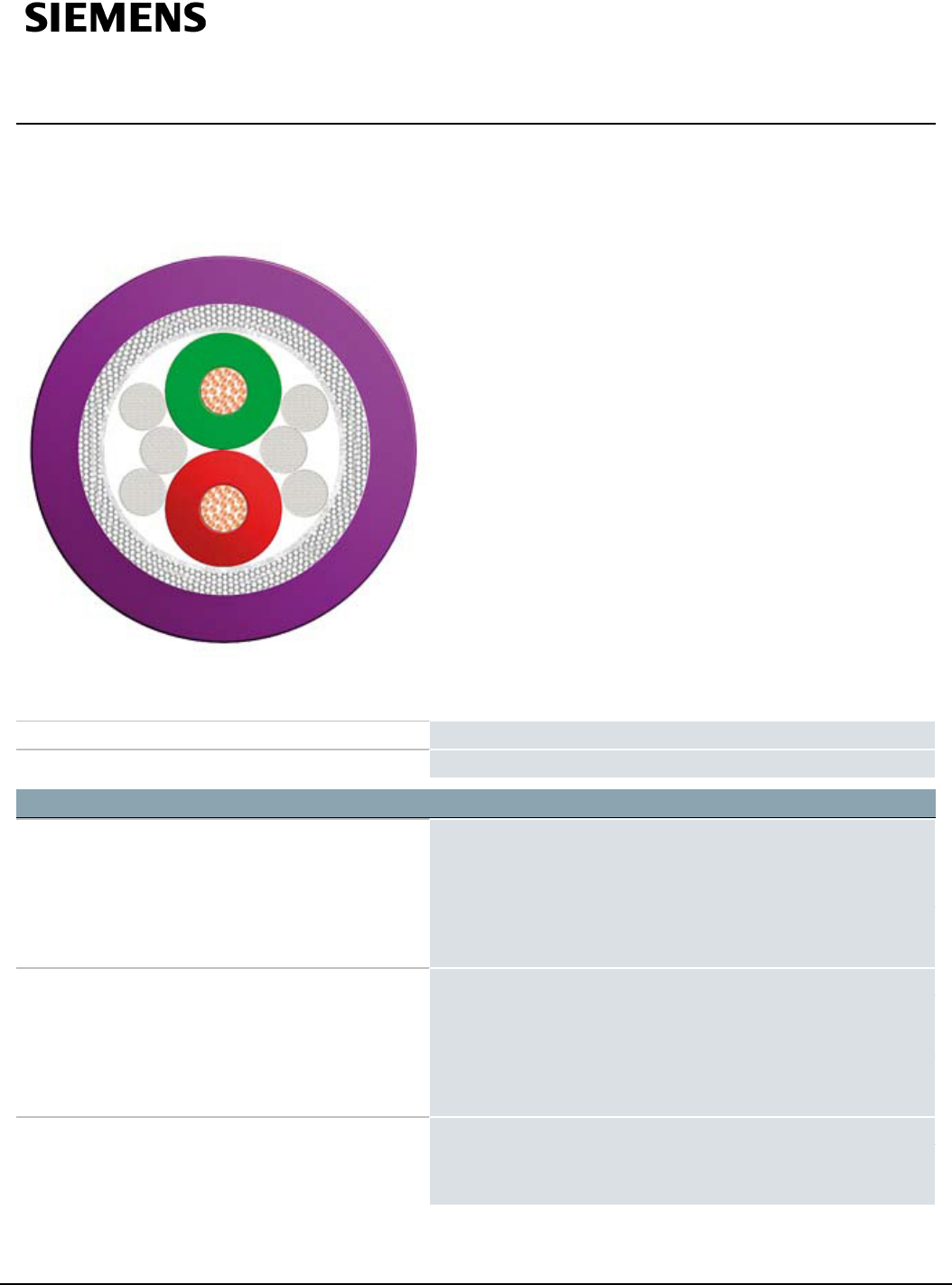

Product type designation PROFIBUS Torsion Cable

Product description Highly flexible bus cable (2-core), sold by the meter, unassembled

PROFIBUS torsion cable, to use in highly flexible applications

(torsion) Delivery unit: max. 1000 m, minimum order 20 m, Sold by

the meter

Suitability for use For use in moving machine components

Cable designation 02Y (ST) C 11Y 1x2x0,8/2,56-150 LI FR VI

Electrical data

Damping ratio per length

● at 9.6 kHz / maximum

0.0025dB/m

● at 38.4 kHz / maximum

0.003dB/m

● at 4 MHz / maximum

0.025dB/m

● at 16 MHz / maximum

0.049dB/m

Impedance

● Rated value

150Ω

● at 9.6 kHz

270Ω

● at 38.4 kHz

185Ω

● at 3 MHz … 20 MHz

150Ω

Relative symmetrical tolerance

● of the characteristic impedance at 9.6 kHz

10%

● of the characteristic impedance at 38.4 kHz

10%

6XV1830-0PH10 Subject to change without notice

Page 1/

Summary of content (3 pages)

PAGE 1
Data sheet Product type designation Product description 6XV1830-0PH10 PROFIBUS Torsion Cable Highly flexible bus cable (2-core), sold by the meter, unassembled PROFIBUS torsion cable, to use in highly flexible applications (torsion) Delivery unit: max. 1000 m, minimum order 20 m, Sold by the meter Suitability for use For use in moving machine components Cable designation 02Y (ST) C 11Y 1x2x0,8/2,56-150 LI FR VI Electrical data Damping ratio per length ● at 9.6 kHz / maximum 0.0025 dB/m ● at 38.
PAGE 2
● of the characteristic impedance at 3 MHz … 20 MHz 10 % Loop resistance per length / maximum 98 mΩ/m Shield resistance per length / maximum 14 Ω/km Insulation resistance coefficient 16000 GΩ·m Capacity per length / at 1 kHz 29 pF/m Operating voltage ● RMS value 80 V Mechanical data Number of electrical cores 2 Design of the shield Overlapped aluminum-clad foil, sheathed in a braided screen of tin-plated copper wires Type of electrical connection / FastConnect No Outer diameter ● of inner
PAGE 3
Burning behavior flame resistant according to IEC 60332-1-2 Class of burning behaviour / according to EN 135016 Eca Chemical resistance ● to mineral oil oil resistant according to IEC 60811-2-1 (7x24h/90°C) ● to grease resistant ● to water conditional resistance Radiological resistance / to UV radiation resistant Product properties, functions, components / general Product feature ● halogen-free Yes ● silicon-free Yes Standards, specifications, approvals UL/ETL listing / 300 V Rating Yes; CM
