Data Sheet

Data sheet 4AM5242-4TD40-0FA0

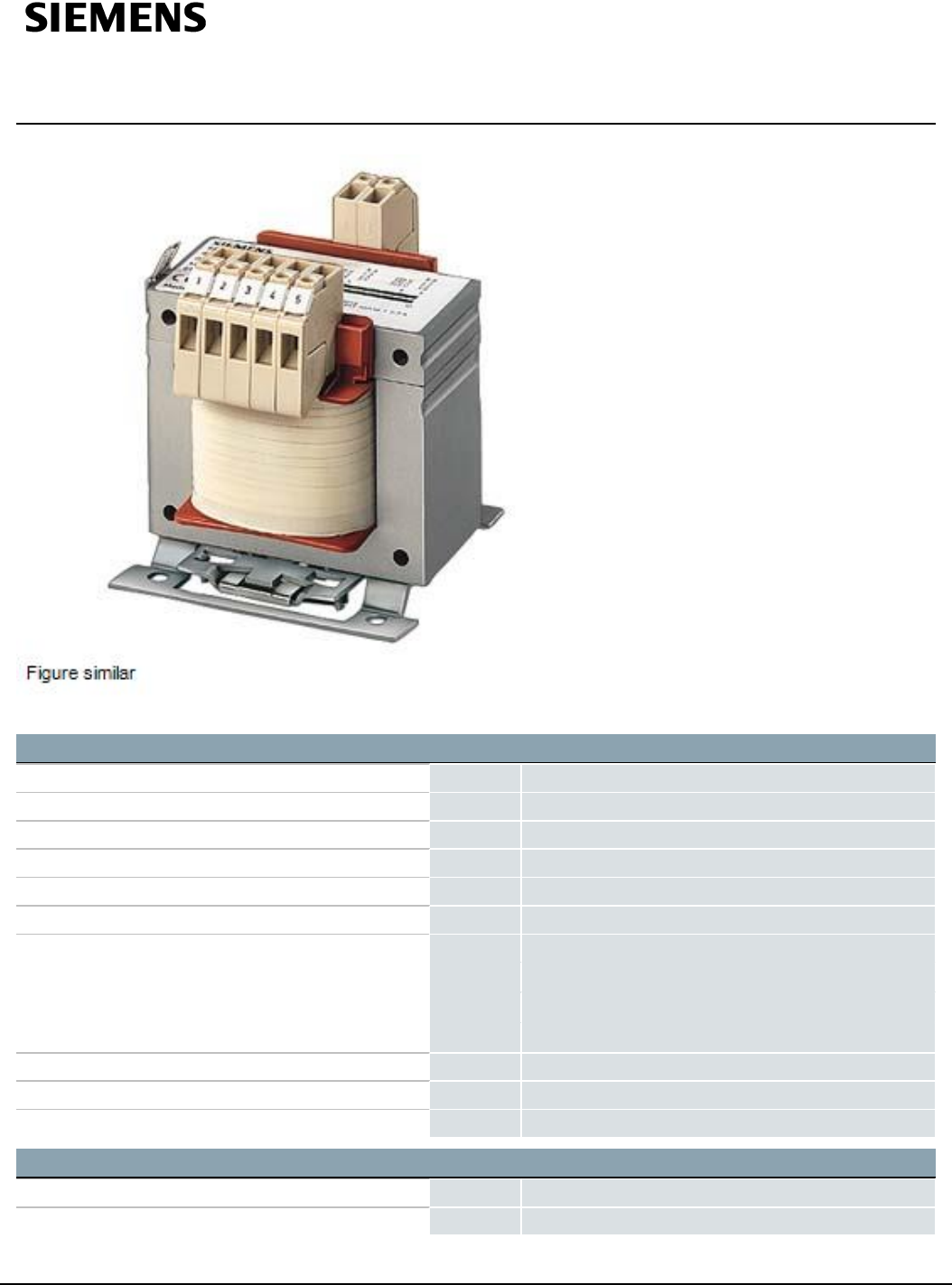

TRANSFORMER SITAS; PHASES:1;
PN/PN(S6)(KVA):0,63 /2,35; UPRI(V):230+/-5%;
USEC(V):230 ( 2 X 115 ); ISEC(A):2,739 ( 2 X 2,739 );
F(HZ):50...60; VECTOR GR./SHIELD WNG.:II0 /0;
TA/ISOKL:40 /B; IP00; TYPE OF
TERMINALS:SCREW/TAB CONNECTION;
INSTALLATION:SCREW; EN 61558-2-1, -2-2, -2-4
>UL/CSA-RECOGNIZED< >CONTROL CIRCUIT
TRANSFORMER< >ISOLATION TRANSFORMER<
General technical data:
Product designation transformer SITAS
Product brand name SIDAC
Operating apparent output rated value V·A 630
Efficiency 0.92
Connection method for transformers Ii0
Certificate of suitability CE / cRUus
Product function
● Temperature monitoring
No
● Insulation monitoring
No
● Short-circuit and overload proof
No
Number of shielding windings 0
Short-term vector power V·A 2350
Relative short-circuit voltage % 3.7
Inputs:
Phase number of the inputs 1
Input voltage
4AM5242-4TD40-0FA0 Subject to change without notice
Page 1/
3
02/12/2019 © Copyright Siemens
