Commissioning and parameterization
The following operating modes are available:
● Heating / cooling control: The actuator uses two separate setpoints for heating and cool-
ing each with a range 0...100%.
● Position control: The actuator is controlled with a 0...100% position setpoint.
Operating mode “Heating / cooling control”
When using “heating / cooling control” the parameters as listed below are available. Parame-
ter sets for 6-port control ball valves DN 10 and DN 20 can be selected. Details on the char-
acteristic curves of these two valves can be found in the datasheet A6V10564480.
Note that the valve angle [°] moves counter-clockwise, whereas the actuator position [%]
moves clockwise. Therefore valve angle 15° is achieved by an actuator position of 84% etc.
One of the two setpoints (heating or cooling) needs to be “0%” in order for the actuator to be
able to move. Are both setpoints not equal to “0%”, the actuator doesn’t move until the
setpoint conflict is resolved.

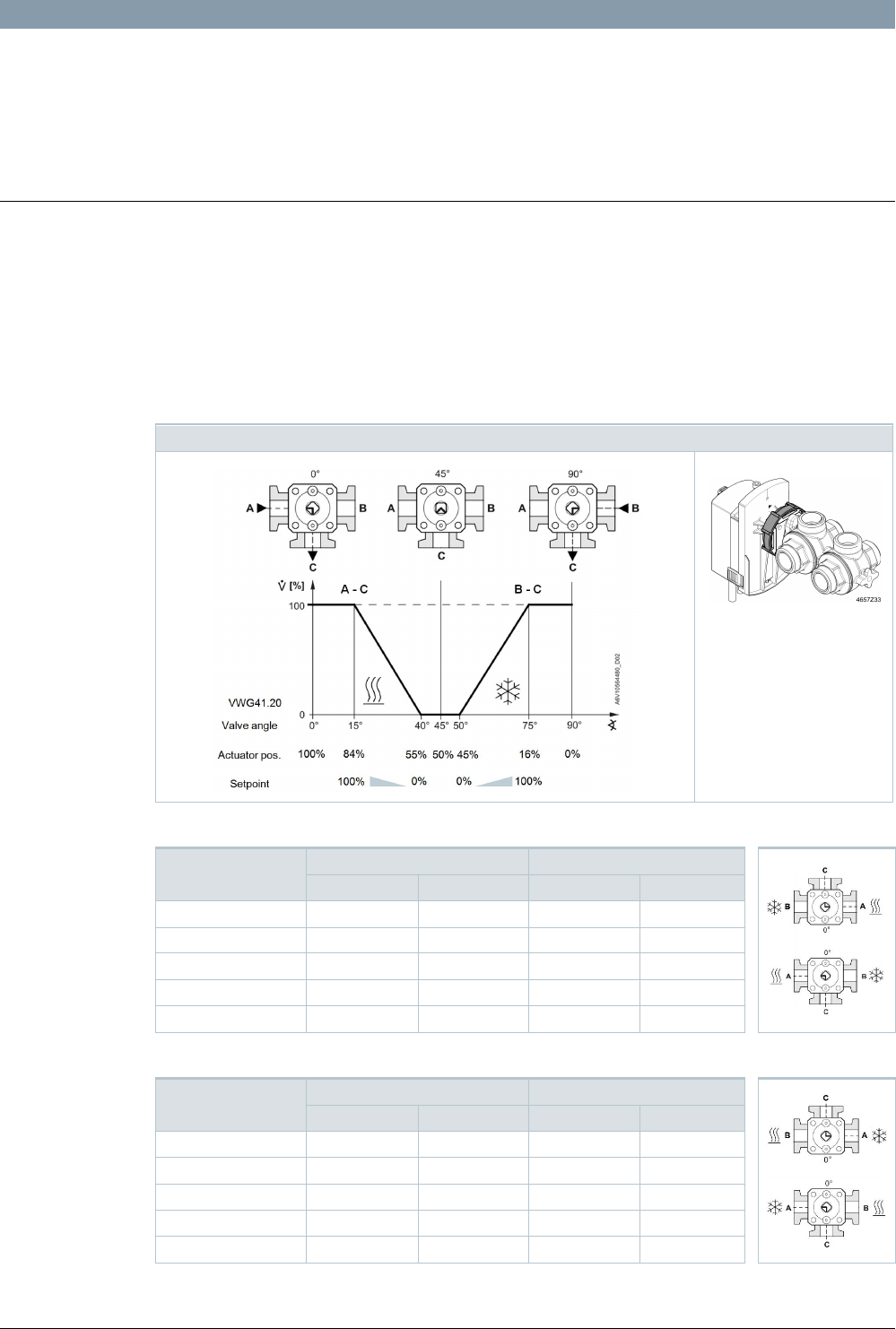

Valve angle and actuator position, example for VWG41.20
The 6 port control ball valve can
be mounted as shown in the
mounting instruction
A6V10636144 (coil facing
upward) or rotated by 180° (coil
facing downward). The ETS
parameter settings remain the
same, but heating and cooling
change their sides (cf. tables
below).
Parameters for standard piping of heating / cooling:
Parameter VWG41.10 VWG41.20
Valve angle Actuator position Valve angle Actuator position
Max. position heating 15° 84% 15° 84%
Min. position heating 30° 67% 40° 55%
Closed position 45° 50% 45° 50%
Min. position cooling 60° 33% 50° 45%
Max. position cooling 75° 16% 75° 16%
By parameter inversion, heating and cooling are swapped:
Parameter VWG41.10 VWG41.20
Valve angle Actuator position Valve angle Actuator position
Max. position heating 15° 16% 15° 16%
Min. position heating 30° 33% 40° 45%
Closed position 45° 50% 45° 50%
Min. position cooling 60° 67% 50° 55%
Max. position cooling 75° 84% 75° 84%
