76 Clinitek Advantus Operator’s Guide
System Configuration
Install the Holddown Plate
1. Position the holddown plate with the arrow side facing up and the arrow
pointing to the back.
2. Place the pin on the front of the holddown plate into the hole at the front of
the fixed platform.
3. Align the tab at the back of the holddown plate with the slot at the back of
the platform.
4. Snap the holddown plate into place.
5. Ensure that the white calibration bars are visible.

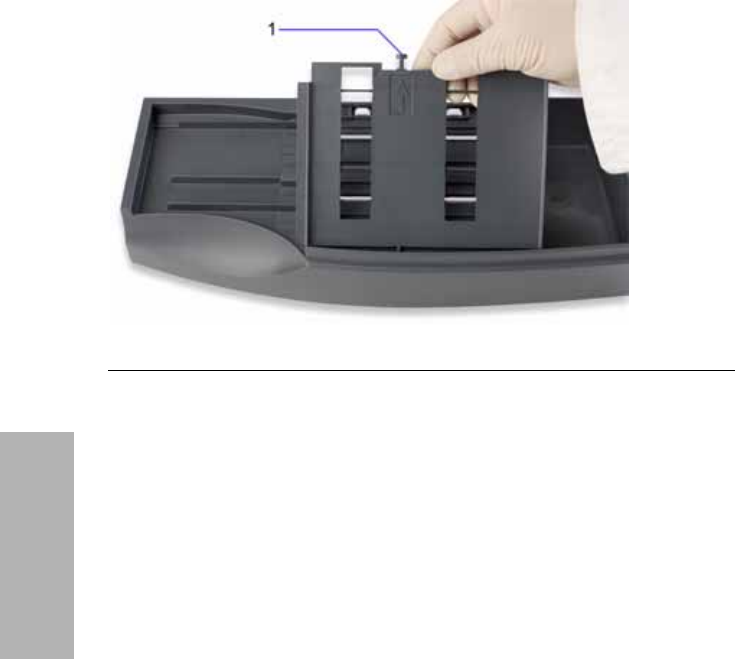

Figure 25 Install the Holddown Plate
1
Tab
