72 Clinitek Advantus Operator’s Guide
System Configuration
4. Make sure all items are included with your analyzer, and keep them for
future use.
• Fixed platform and holddown plate
• 2 Push bars
• Moving table
• Quality Package of printed documents
• Box of 5 waste bin liners
• Roll of printer paper
• 2 Power cords
• Operator’s Guide CD
A single-language printed operator’s guide is also available. Contact your local
distributor or supplier for information on obtaining this guide.

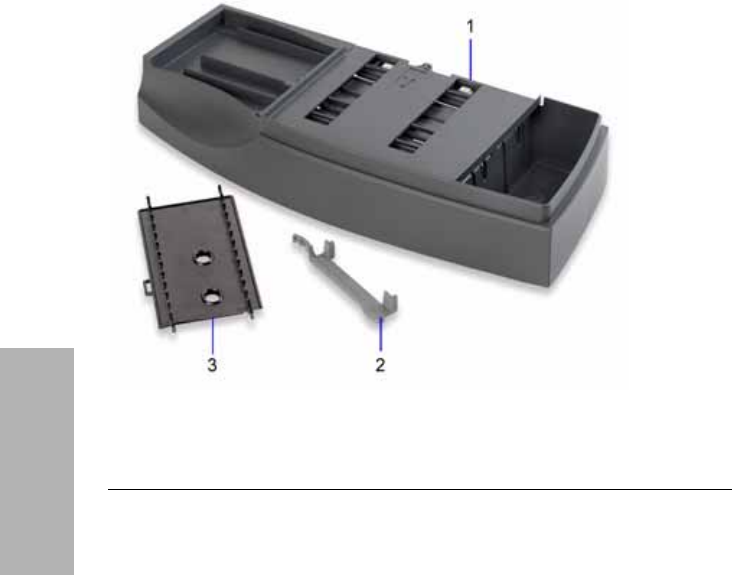

Figure 21 Instrument Parts
5. Retain the Clinitek Advantus shipping carton and packing for several
weeks.
If you need to ship the analyzer, the shipping carton affords the best
protection against damage.
1
Fixed platform and holddown plate
2
Push bar
3
Moving table
