46 Clinitek Advantus Operator’s Guide
Maintenance
5. Remove any paper remaining in the printer:
a. Locate the printer paper release lever.
This lever is colored green and is located on the right of the printer
when looking at the front of the analyzer.
b. Push down on the back of the lever to unlock the roller.
c. Pinch and lift the front of the lever to raise the paper guide.
d. Carefully pull paper through the printer in its normal direction of travel.

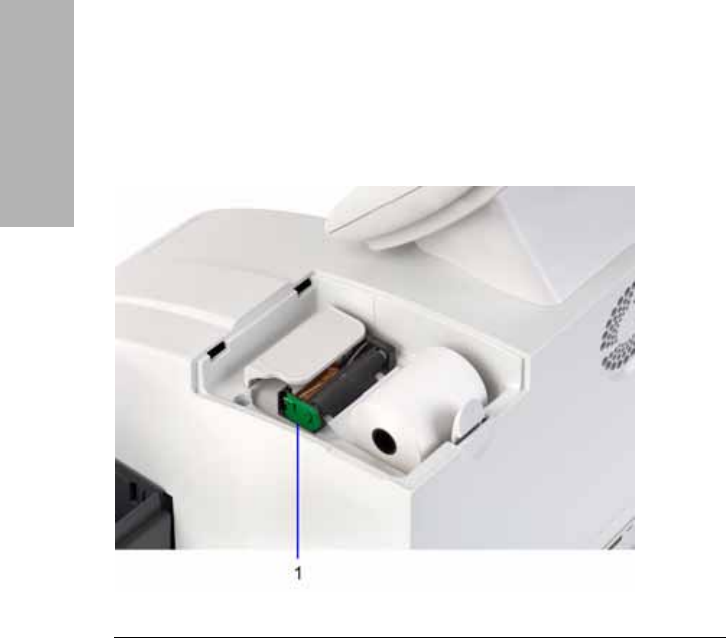

Figure 13 Printer Release Lever
6. Obtain a new paper roll.
7. Unroll sufficient paper to feed the printer.
8. Hold the roll just above the printer, with the paper unrolling from
underneath.
9. Push the paper gently under the roller at the back of the printer.
The printer automatically pulls the paper into the printer and behind the
paper guide on the top of the printer.
1
Printer release lever
