Remote operation
7.1 Operating via SIMATIC PDM
SITRANS LR250 (PROFIBUS PA)
88 Operating Instructions, 01/2014, A5E32221386-AB

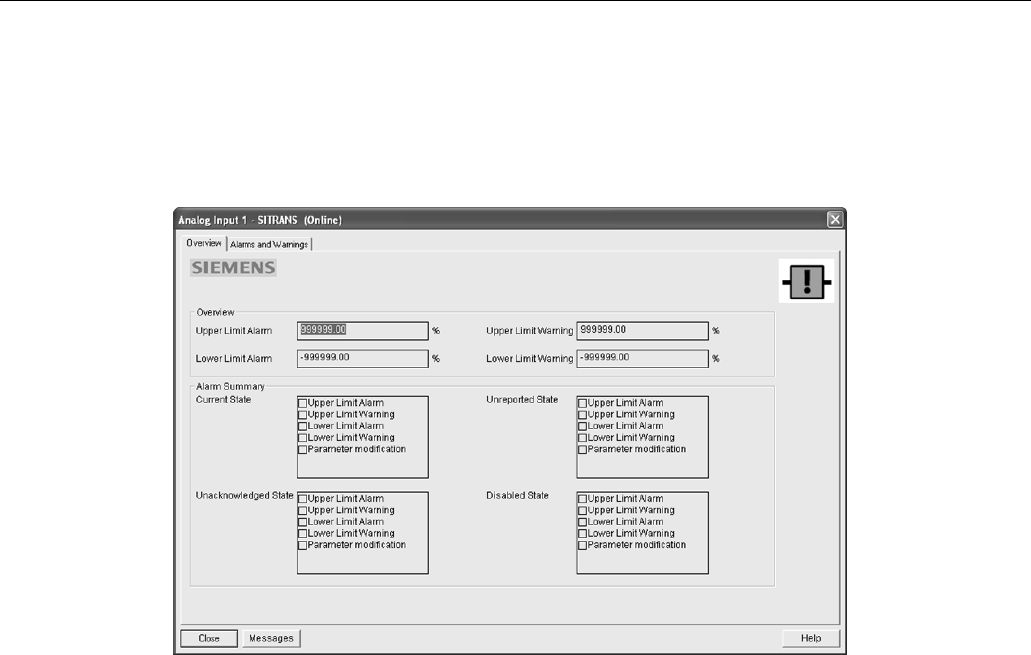

Analog Input 1/Analog Input 2
Open the menu
View – Device Diagnostics
and go to
Analog Input 1/Analog Input 2
. Click on the
tab
Overview
to see the status of all warnings and alarms. Click on the tab
Alarms and Warnings
for details.
Update
Open the menu
View – Update
to refresh the screen.
