Remote operation
7.1 Operating via SIMATIC PDM
SITRANS LR250 (PROFIBUS PA)
86 Operating Instructions, 01/2014, A5E32221386-AB
Device diagnostics
Device status
Open the menu
View
– Device Diagnostics and go to
Device Status
to view Diagnostics, Device
Status, Extended Diagnostics, and Maintenance.

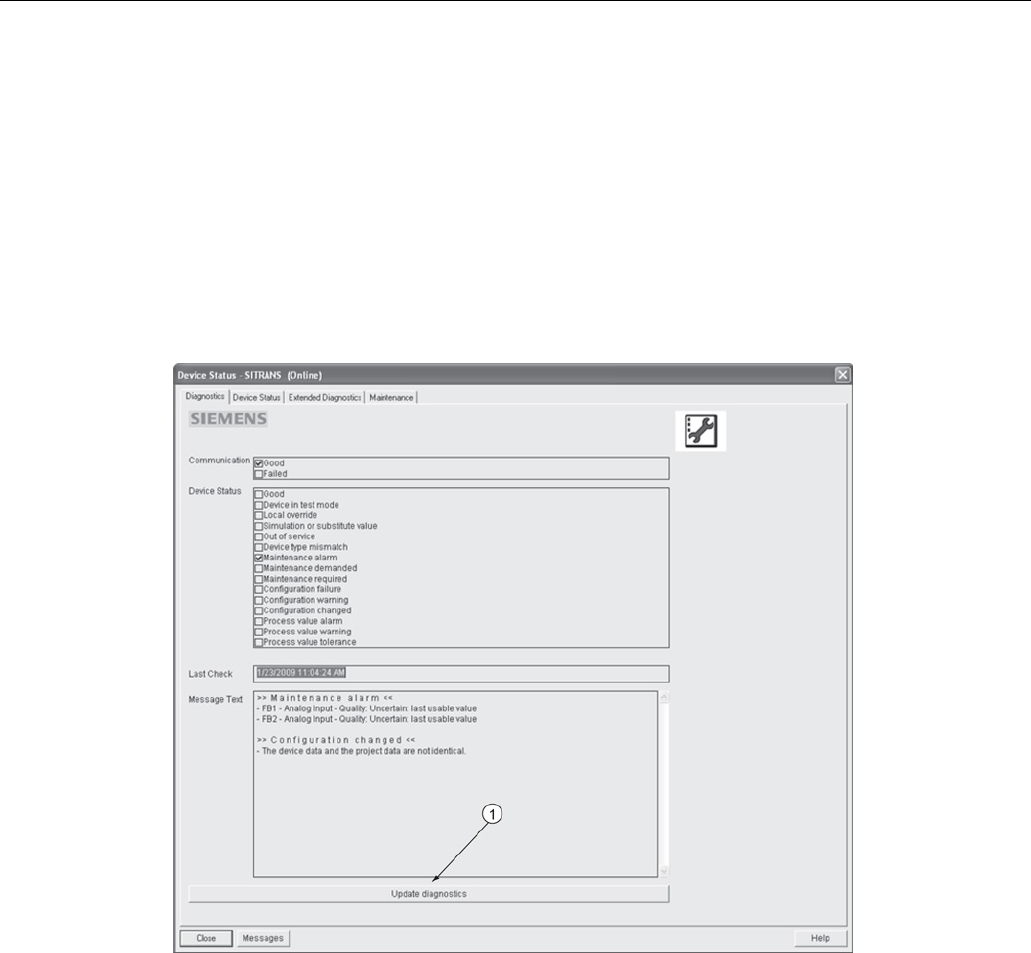

Diagnostics
In the Device Status window, click on the
Diagnostics
tab, then on the
Update diagnostics
button
, to update diagnostic information and refresh linked icons.
①
Update diagnostics
