Remote operation

7.1 Operating via SIMATIC PDM

SITRANS LR250 (PROFIBUS PA)

Operating Instructions, 01/2014, A5E32221386-AB

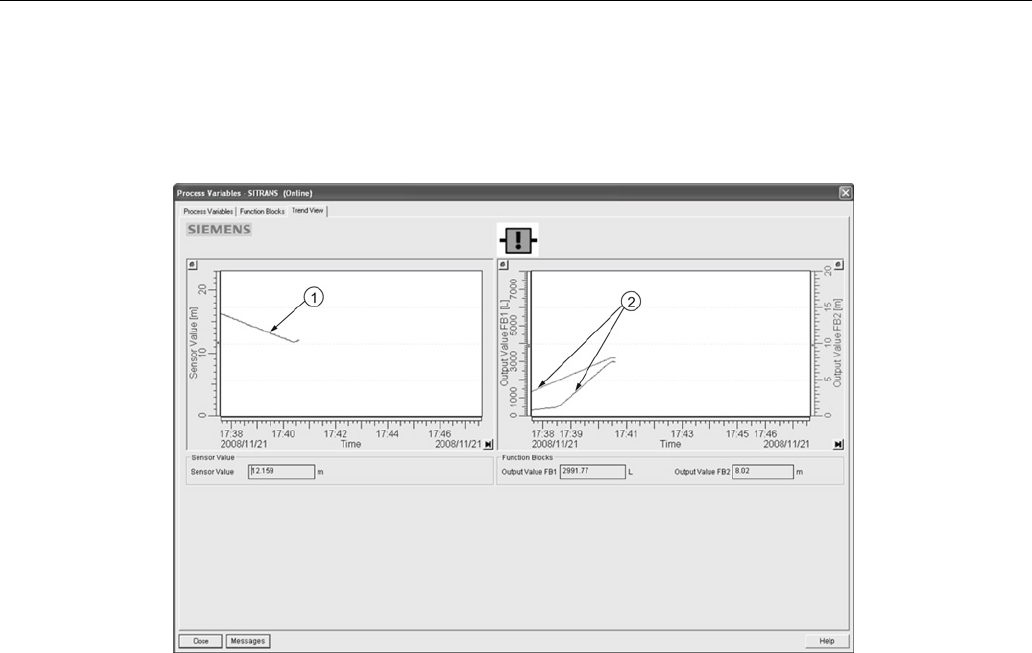

Trend view

Open the menu

View – Process Variables

and click on

Trend View

to monitor Sensor Value and

values for AIFB1 and AIFB2.

①

trend line

②

trend lines
