Remote operation

7.1 Operating via SIMATIC PDM

SITRANS LR250 (PROFIBUS PA)

Operating Instructions, 01/2014, A5E32221386-AB

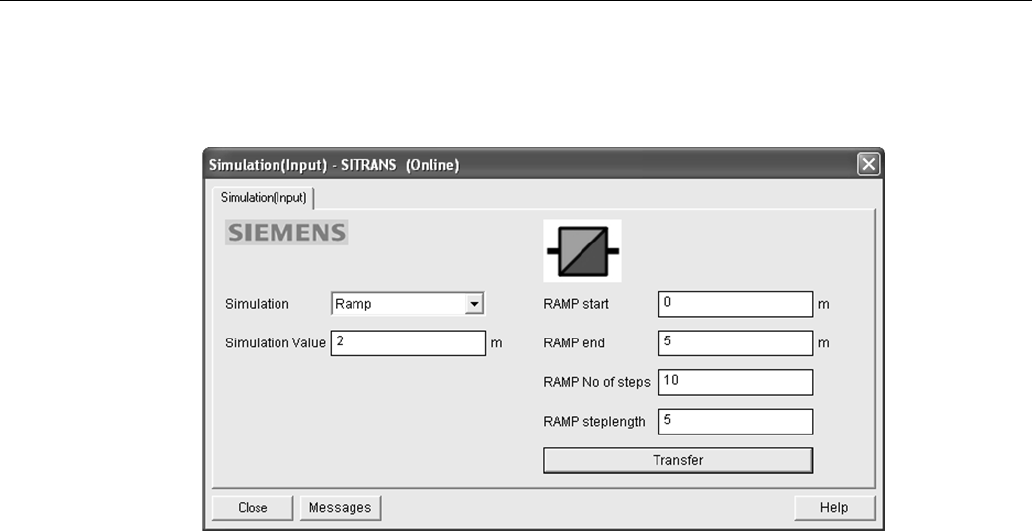

Simulate input

1. Open the menu

Device – Simulation

, and select

Simulation (Input)

2. To enable simulation select

Fixed

Ramp

3. If you select Ramp, enter the step length and number of steps.

4. Enter the simulated value and click on

Transfer

5. After simulation is complete, disable simulation and click on

Transfer

7.1.5.8

Write locking

Prevents any changes to parameters via PDM or the hand-held programmer. If Write Locking is

enabled, the data can be viewed but not modified.

To enable/disable Write Locking

1. Open the menu

Device – Write Locking

and turn Write Protection

Off

2. Click on

Transfer.
