Remote operation

7.1 Operating via SIMATIC PDM

SITRANS LR250 (PROFIBUS PA)

Operating Instructions, 01/2014, A5E32221386-AB

7.1.5.7

Simulation

Note

The Simulation parameter influences output t

o the control system.

Two options enable you to test the functioning of the Analog Input Function Blocks or the

functioning of everything between the Transducer Block and Output. For more details see

Analog Input Function Blocks 1 and 2 (Page 225).

Simulate analog input to AIFB1 or AIFB2

Allows you to input a simulated measured value, status, and quality, in order to test the

functioning of an Analog Input Function Block.

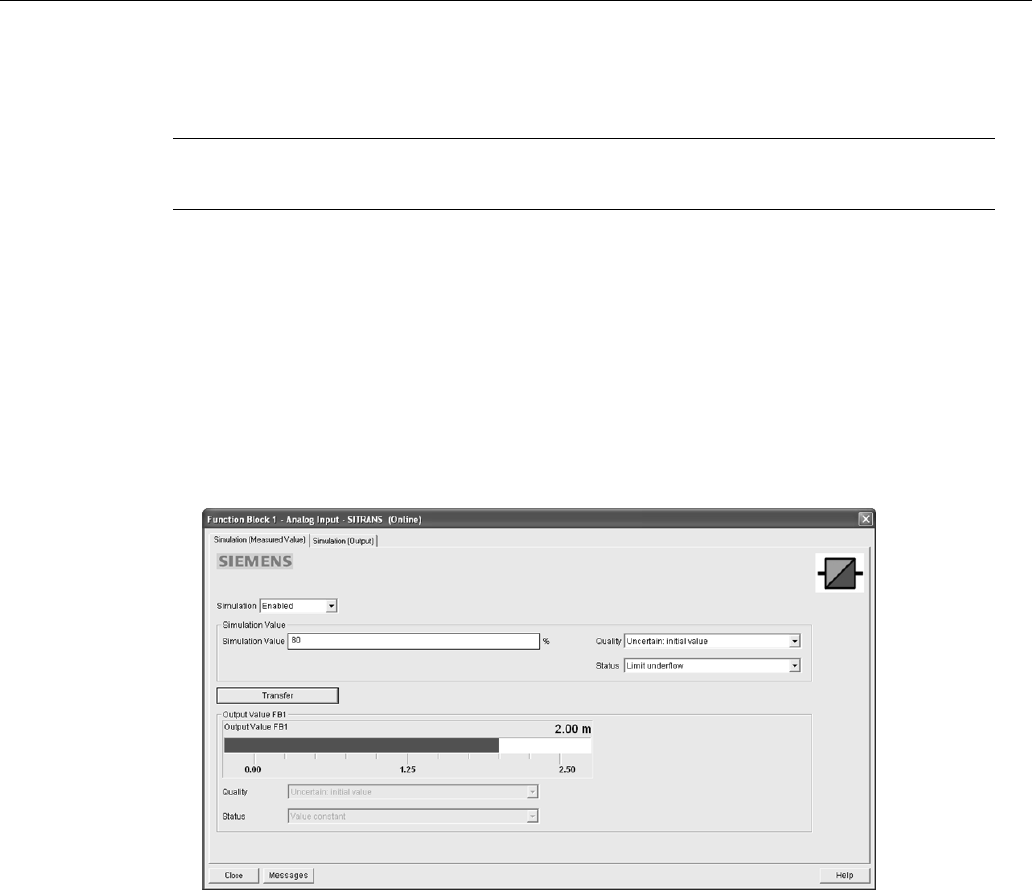

1. Open the menu

Device – Simulation

, and select the desired function block.

2. Click on the tab

Simulation (Measured value)

3. Enable simulation, enter a percentage value, set the desired quality and status, and click on

Transfer

. See Status Byte (Page 234) for more information on status and quality.
