Remote operation

7.1 Operating via SIMATIC PDM

SITRANS LR250 (PROFIBUS PA)

76 Operating Instructions, 01/2014, A5E32221386-AB

7.1.5.3

Echo setup

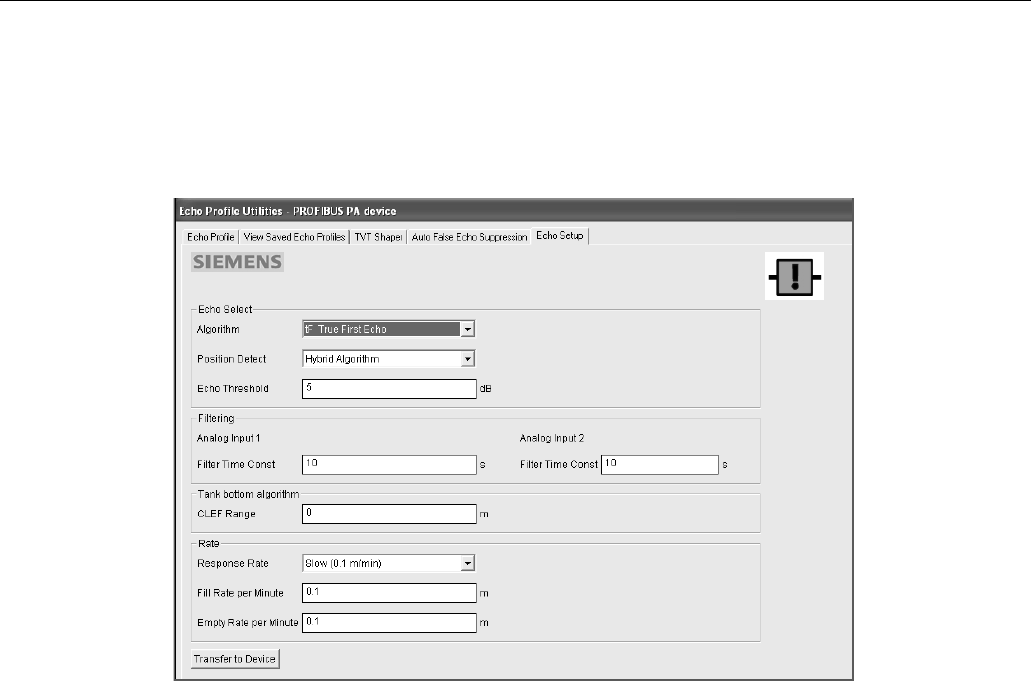

Provides quick access to echo selection, filtering, and response rate parameters.

Open the menu

Device – Echo Profile Utilities

and click on

Echo Setup
