Remote operation
7.1 Operating via SIMATIC PDM
SITRANS LR250 (PROFIBUS PA)
Operating Instructions, 01/2014, A5E32221386-AB
75

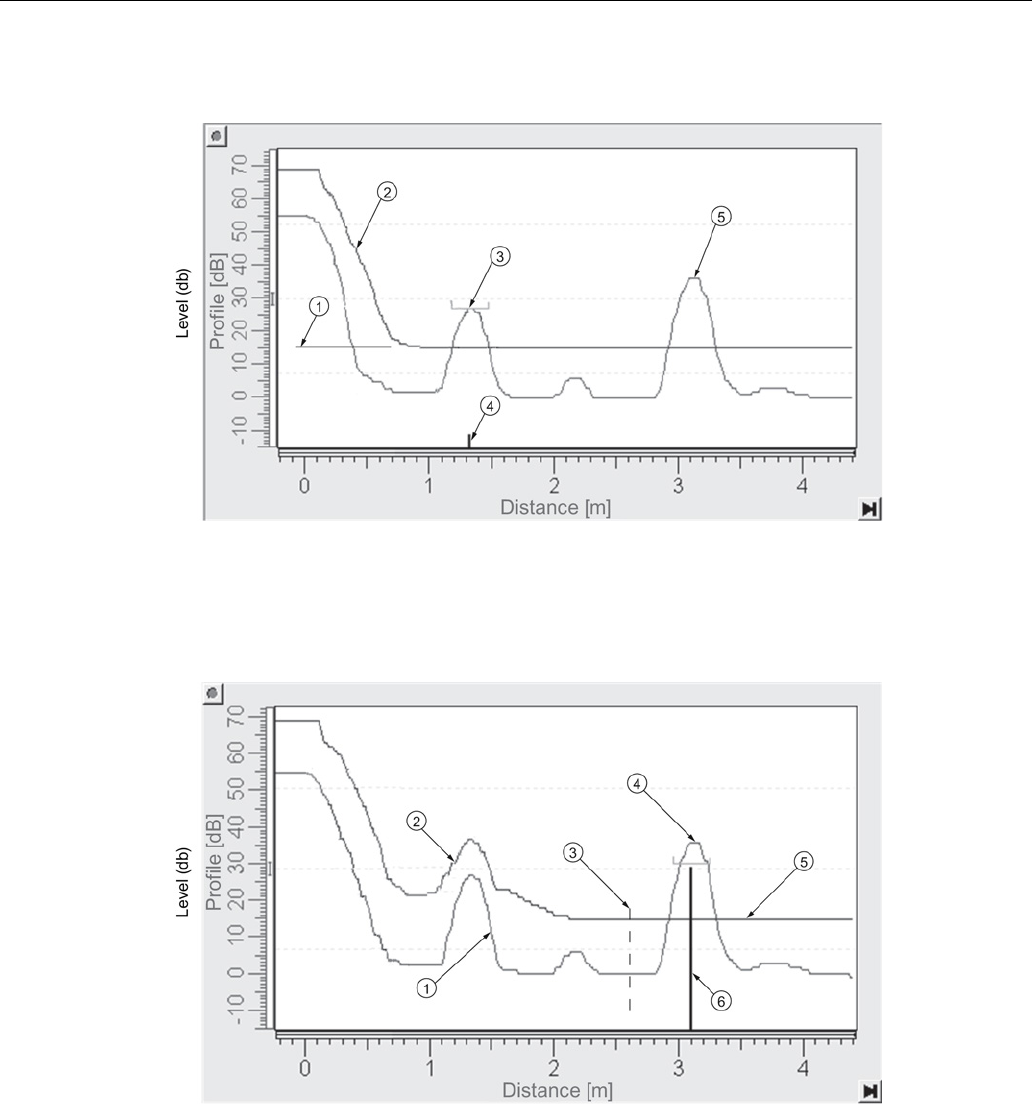

Before Auto False Echo Suppression
①
TVT Hover Level
④
Echo marker
②
Default TVT
⑤
Material level
③
False echo
After Auto False Echo Suppression
①
False echo
④
Material level
②
Learned TVT
⑤
Default TVT
③
Auto False Echo Suppression Range
⑥
Echo marker
