Remote operation

7.1 Operating via SIMATIC PDM

SITRANS LR250 (PROFIBUS PA)

72 Operating Instructions, 01/2014, A5E32221386-AB

TVT Shaper

Note

Double click on each axis to see the X scale and data scale values. Right

-click or Left-click

on the axis and drag to reposition the scale.

This feature allows you to manually adjust the TVT to avoid false echoes caused by

obstructions. For an explanation see Auto False Echo Suppression (Page 207).

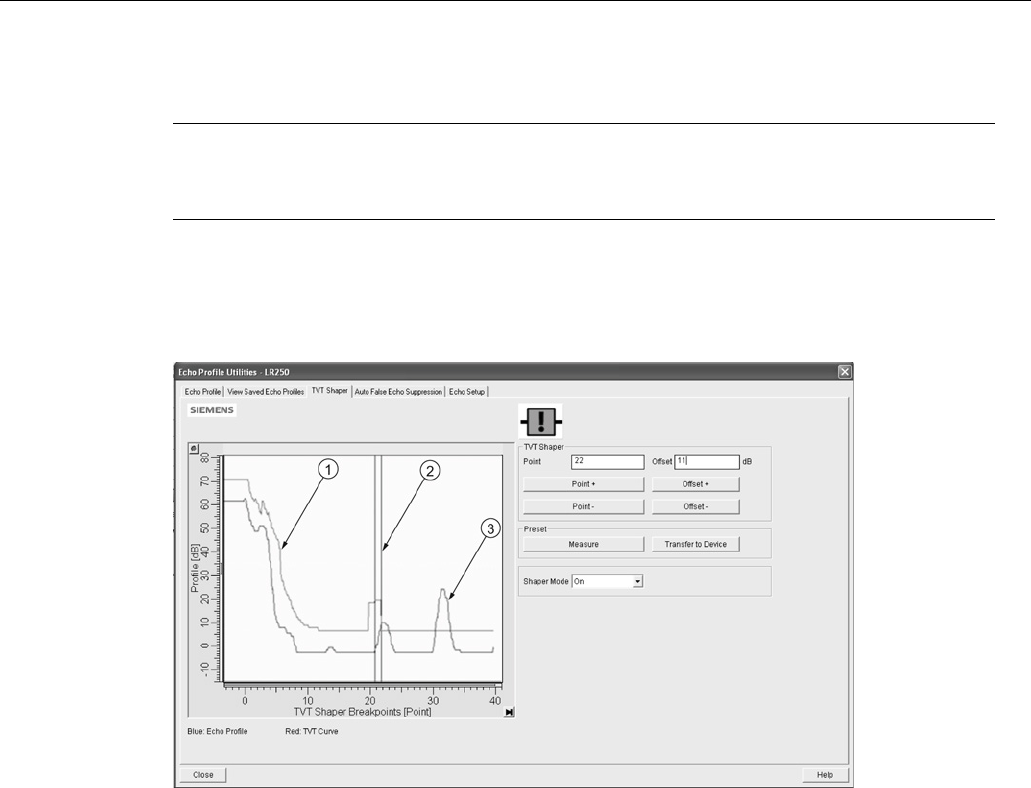

Open the menu

Device – Echo Profile Utilities

and click the tab

TVT Shaper

①

TVT

②

Cursor

③

Echo profile

● Initial profile graph is blank upon entry to dialog. Click on

Measure

to view and upload the

current TVT from device.

● Change the position of the cursor on the TVT using the

Point+

and

Point–

buttons: raise and

lower the TVT using

Offset+

and

Offset

● Alternatively, enter values for

Point

and

Offset

directly into the dialog boxes.

● Click on

Transfer to Device
