Remote operation

7.1 Operating via SIMATIC PDM

SITRANS LR250 (PROFIBUS PA)

70 Operating Instructions, 01/2014, A5E32221386-AB

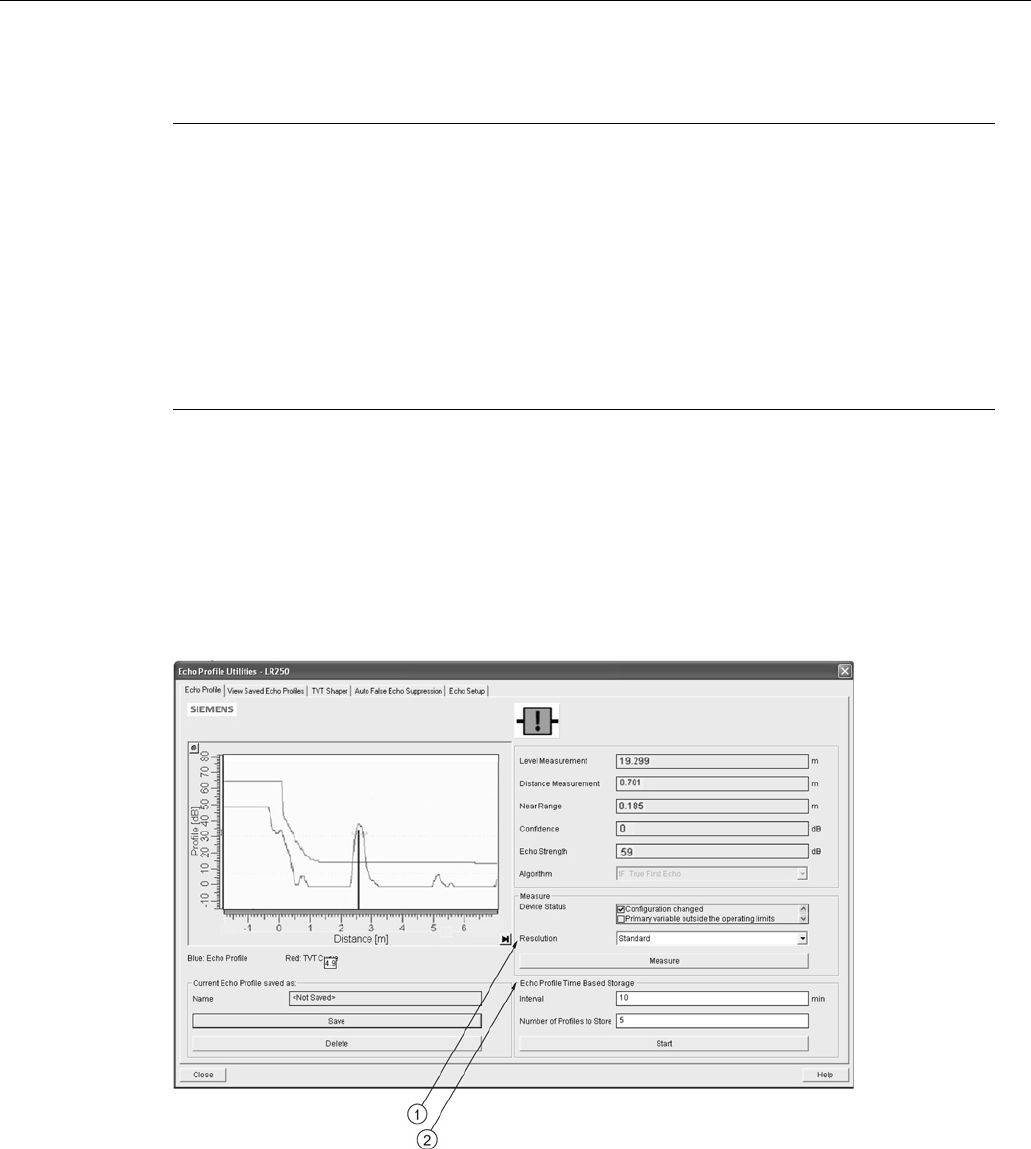

Echo profile

Note

•

Double click on each axis to see the Xscale and Data Scale values.

•

To zoom in to a section of the profile, left-click and drag a marquee around it. Right click

inside the window to zoom out.

•

Expand or compress the x and/or y axes:

– Left-click on the axis and drag in either direction to reposition the low end of the scale.

– Right-click on the axis and drag in either direction to reposition the high end of the

scale.

•

After saving a profile click on

, not the

button, to close the Echo Profile Utilities

window, otherwise the profile will not be saved.

● In the

Echo Profile Utilities

window click the

Echo Profile

tab.

● Initial profile graph is blank upon entry to dialog. Click

Measure

to update the profile.

● It is recommended to use the

Detailed

resolution view of the echo profile for troubleshooting.

For faster and more coarse views, the

Standard

resolution may be used.

● Click

Save

and in the new window enter a name and click

● Click

to exit.

①

Resolution

②

Echo Profile Time Based Storage
