Remote operation

7.1 Operating via SIMATIC PDM

SITRANS LR250 (PROFIBUS PA)

68 Operating Instructions, 01/2014, A5E32221386-AB

7.1.4

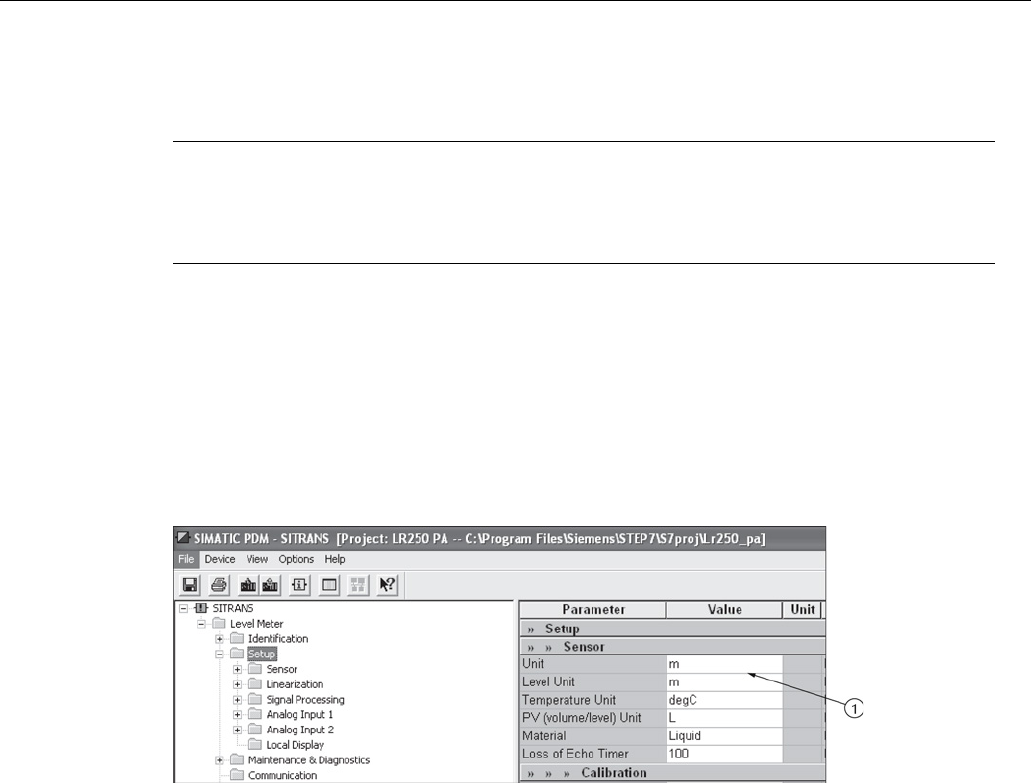

Changing parameter settings using SIMATIC PDM

Note

•

For a complete list of parameters, see Parameter Reference (Page 93).

•

Clicking on

Cancel

during an upload from device to SIMATIC PDM will result in some

parameters being updated.

Many parameters are accessed via pull-down menus in PDM. See Parameters accessed via

pull-down menus (Page 69) for others.

1. Launch SIMATIC PDM, connect to device, and upload data from device.

2. Adjust parameter values in the parameter value field then

Enter

. The status fields read

Changed

3. Open the Device menu, click on

Download to device

, then use

File - Save

to save settings

offline. The status fields are cleared.

①

value fields
