Remote operation
7.1 Operating via SIMATIC PDM
SITRANS LR250 (PROFIBUS PA)
66 Operating Instructions, 01/2014, A5E32221386-AB

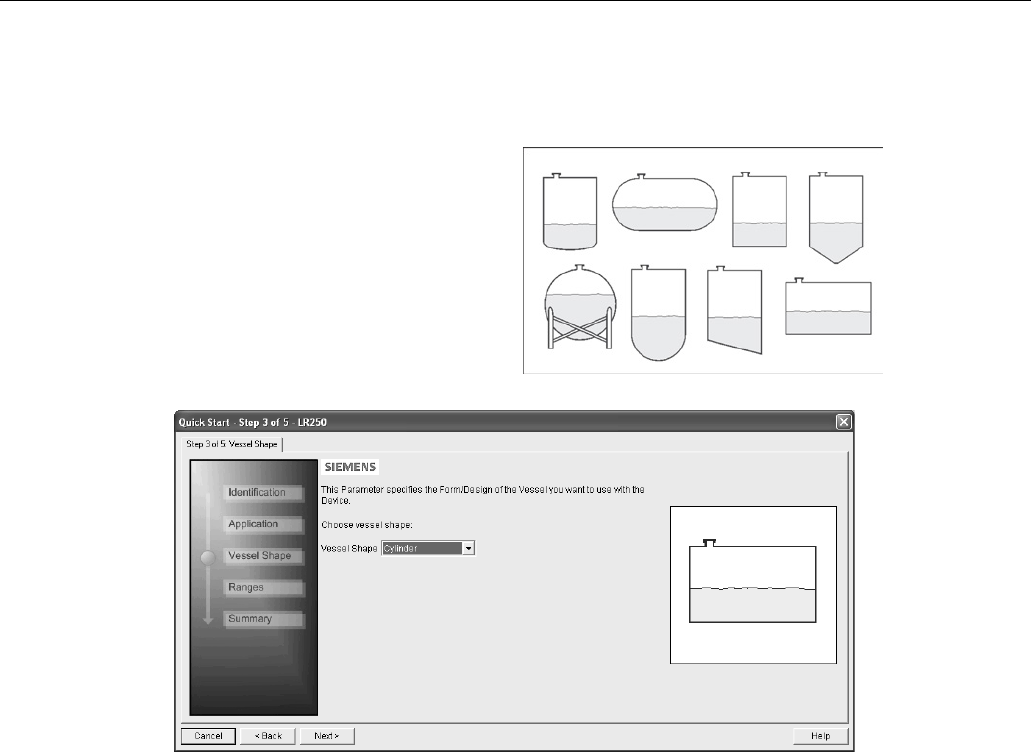

Step 3 – Vessel Shape
The vessel shapes shown are
predefined.
For a vessel with obstructions, see
Auto False Echo Suppression via
SI
MATIC PDM (Page 73).
Select the vessel shape, and click on
NEXT
.
