Remote operation

7.1 Operating via SIMATIC PDM

SITRANS LR250 (PROFIBUS PA)

Operating Instructions, 01/2014, A5E32221386-AB

Quick start

Note

•

A reset to

Factory Defaults

should be performed before running the Quick Start Wizard if

device has been used in a previous application. See

Master Reset via SIMATIC PDM

(Page 82).

•

The Quick Start wizard settings are inter-related and changes apply only after you click

FINISH AND DOWNLOAD

at the end of the last step to save settings offline and

transfer them to the device.

•

Do not use the Quick Start Wizard to modify individual parameters: for quick access to

echo profile parameters, see

Echo Profile via SIMATIC PDM (Page 70) or see

Parameter

Reference (Page 93) for a complete list. (Perform customization only after the Quick Start

has been completed.)

•

Click on

BACK

to return and revise settings or

CANCEL

to exit the Quick Start.

•

For a vessel with obstructions see Auto False Echo Suppression via SIMATIC PDM

(Page 73).

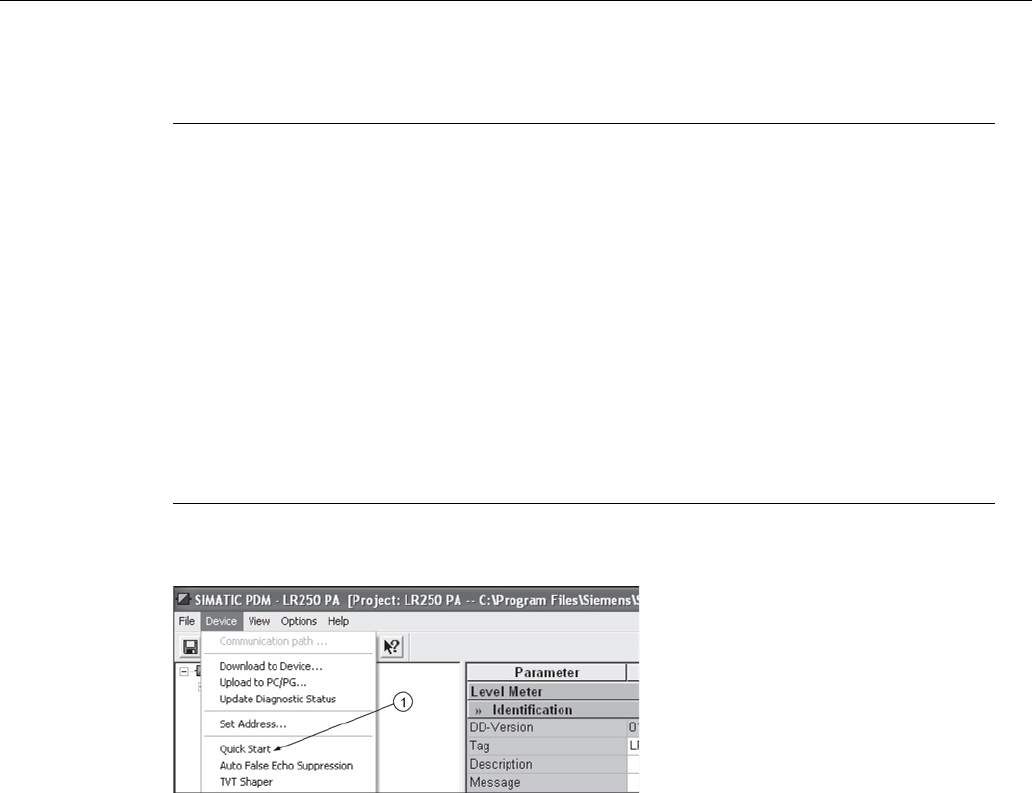

Launch SIMATIC PDM, open the menu

Device – Wizard - Quick Start

, and follow steps 1 to 5.

①

Quick Start
