Commissioning

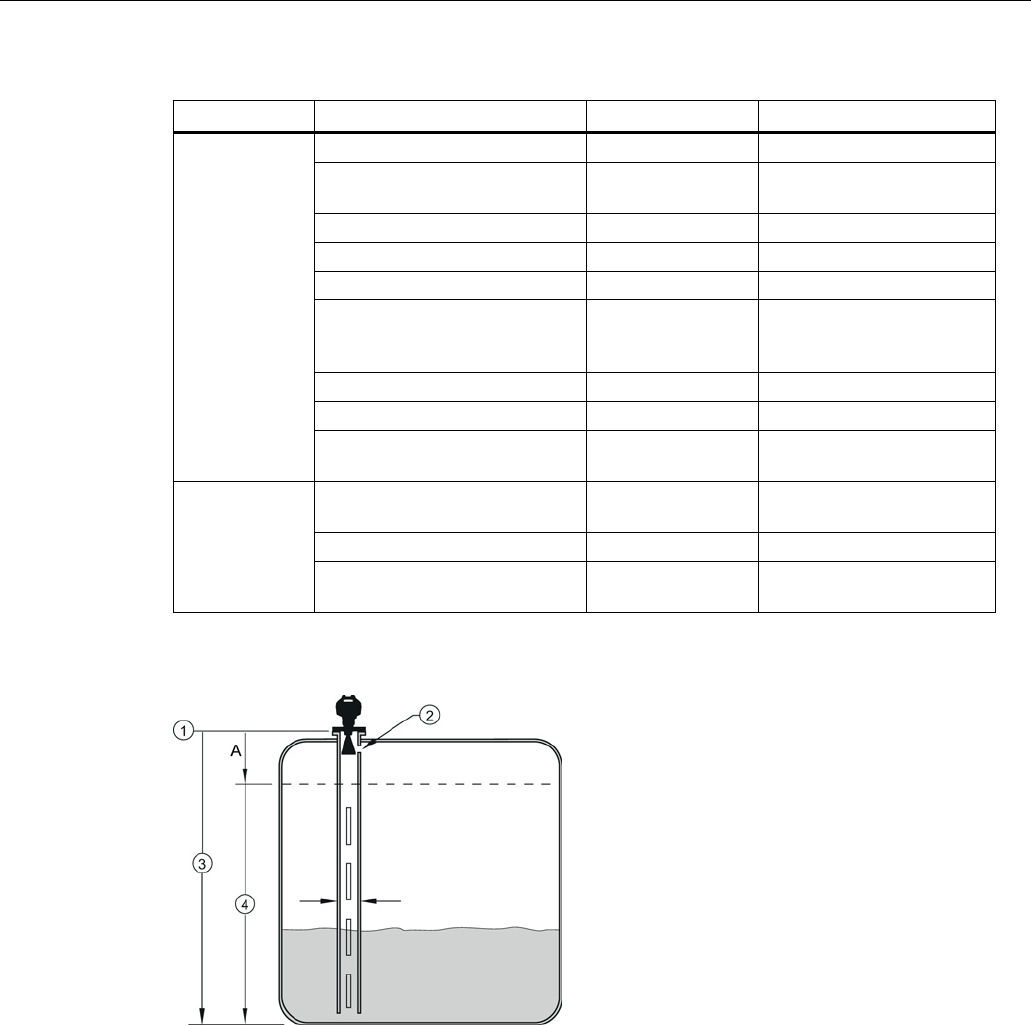

6.2 Application examples

SITRANS LR250 (PROFIBUS PA)

56 Operating Instructions, 01/2014, A5E32221386-AB

Parameter type

Parameter No./Name

Options/Values

Function

Quick Start

Wizard

parameters

Introduction

Continue with Wizard.

Language (1.1)

Continue with current

language.

Material (1.2)

LIQUID LOW DK

Response Rate (1.3)

MED

Medium =1 m/minute

Units (1.4)

meters

Operating mode (1.5)

LEVEL

Level is reported as

Volume when a vessel

shape is selected.

Low Calibration Point (1.6)

5 m (16.4 ft)

High Calibration Point (1.7)

0.5

0.5 m (1.64 ft)

Apply? (Apply changes) (1.8)

YES

Transfers Quick Start

settings to device.

Independent

parameters

Propagation Factor (2.5.3.)

0.988

P.F. for a 50 mm (1.96")

I.D. stillpipe

Position Detect (2.5.7.2.)

HYBRID

CLEF Range (2.5.7.4.)

4.3 Low calibration point -

0.7 m = 4.3 m (14.1 ft)

The recommended values for the propagation factor and for CLEF range are dependent on the

stillpipe diameter. See Propagation Factor/Stillpipe Diameter for values.

①

sensor reference point

③

low calibration point

②

air gap

④

CLEF range 2.5.7.4.

700 or 1000 mm (see CLEF Range settings in table below)
