Commissioning

6.2 Application examples

SITRANS LR250 (PROFIBUS PA)

Operating Instructions, 01/2014, A5E32221386-AB

6.2.1

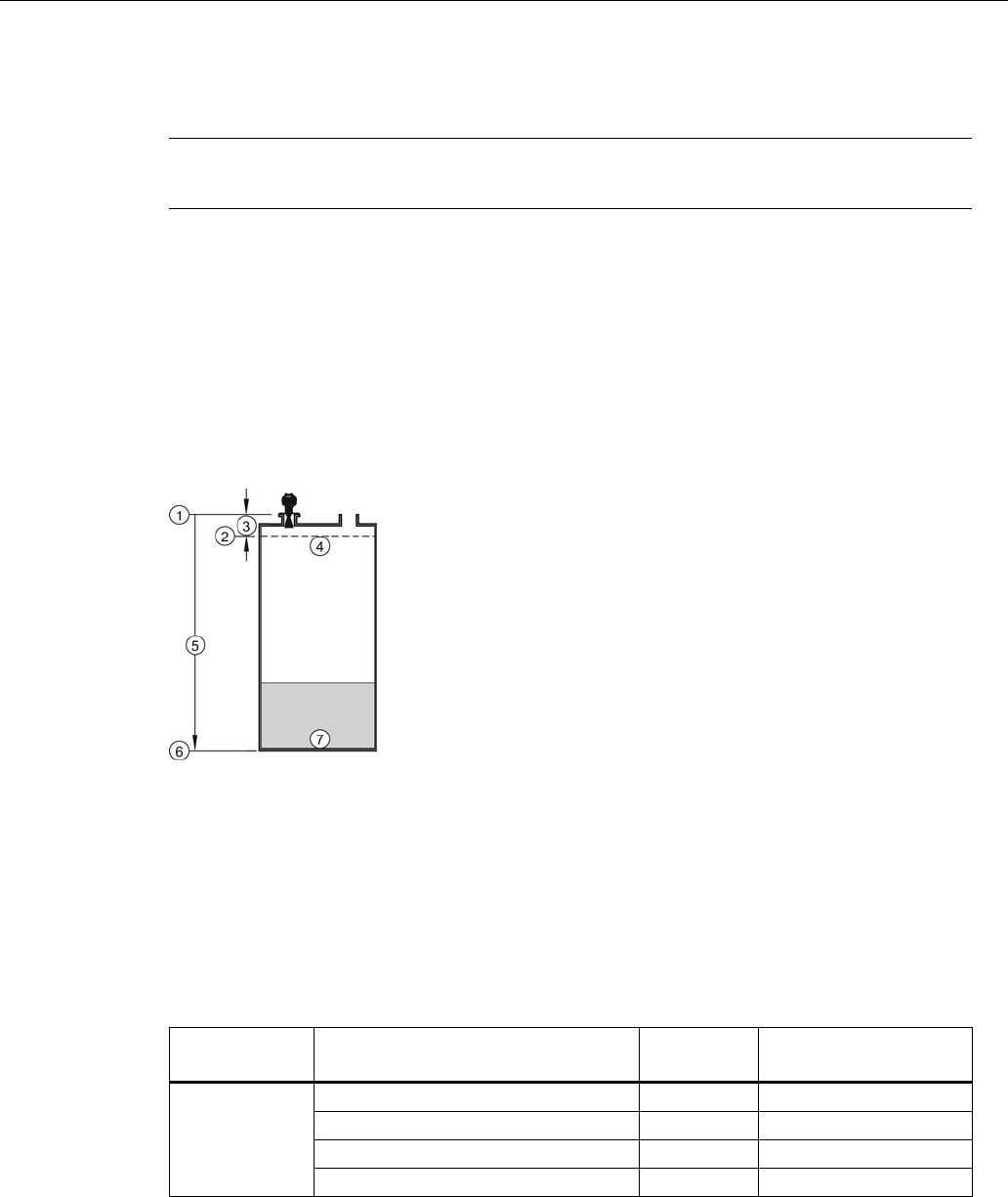

Liquid resin in storage vessel, level measurement

Note

Minimum distance from flange face to target is limited by Near Range (2.5.1.)

To obtain level measurement proportional to resin levels:

● Low Calibration Pt. = 5 m (16.4 ft) from sensor reference point

● High Calibration Pt.= 0.5 m (1.64 ft) from sensor reference point

● Max.fill/empty rate = 0.2 m/min (0.65 ft/min)

In the event of a loss of echo:

● SITRANS LR250 is to report a user-defined value of 4.5 m (14.76 ft) after 2 minutes.

①

Sensor reference point

⑤

5 m

②

High calibration point

⑥

Low calibration point

③

0.5 m

⑦

0% level

④

100% level

Parameter type

Parameter No. /Name

Options/

Values

Function

Quick Start

Wizard

parameters

Material (1.2.)

LIQUID

Response Rate (1.3.)

MED

Medium =1 m/minute

Units (1.4.)

meters

Operating mode (1.5.)

LEVEL

Level
