User's Manual

Commissioning
6.1 Operating via the handheld programmer
SITRANS LR250 (PROFIBUS PA)
48 Operating Instructions, 01/2014, A5E32221386-AB
6.1.3.6

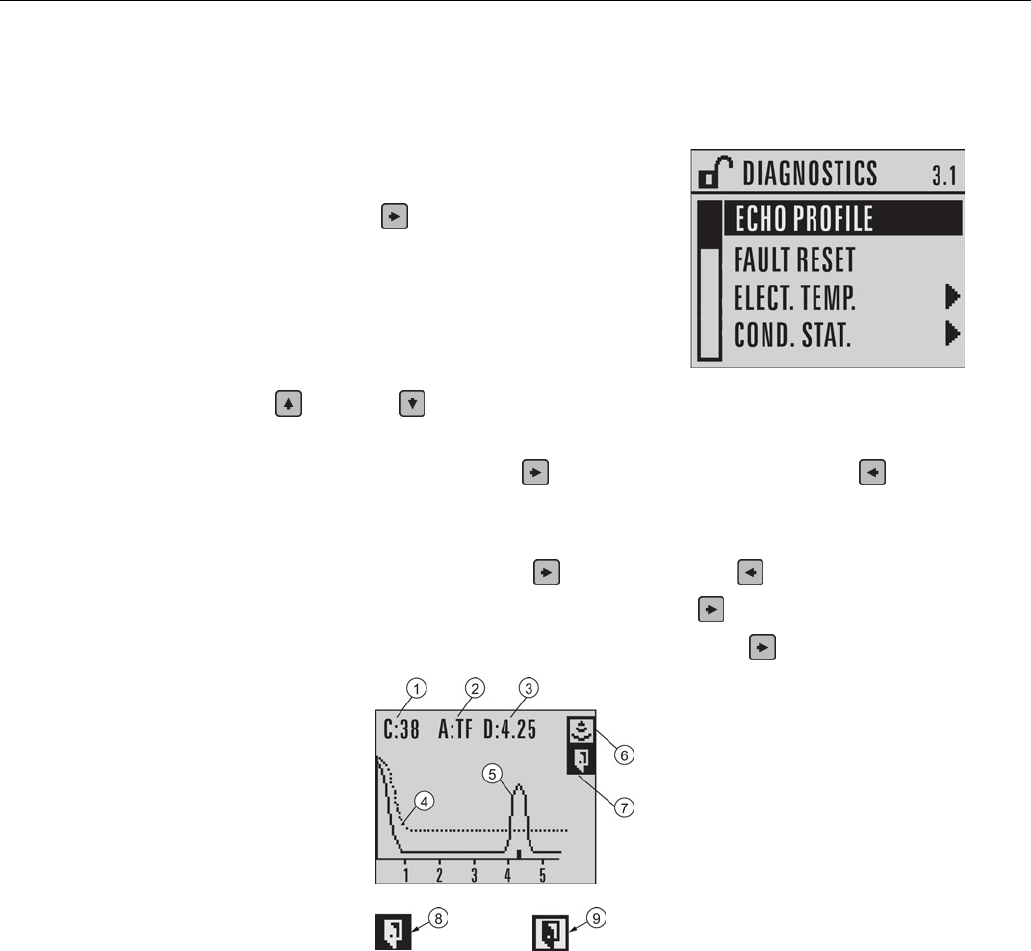

Requesting an Echo Profile
•
In
PROGRAM
mode, navigate to:
Level Meter > (3.) >
Diagnostics > (3.1.) > Echo Profile
•
Press
RIGHT arrow
to request a profile.
•
Use
UP
or
DOWN arrow
to scroll to an icon. When an icon is highlighted, that
feature becomes active.
•
To move a cross-hair, press
RIGHT arrow
to increase the value,
LEFT
arrow
to
decrease.
•
To Zoom into an area, position the intersection of the cross-hairs at the center of that
area, select
Zoom
, and press
RIGHT arrow.
Press
LEFT arrow
to Zoom out.
•
To update the profile, select
Measure
and press
RIGHT arrow.
•
To return to the previous menu, select
Exit
then press
RIGHT arrow.
①
confidence
⑥
measure
②
algorithm: tF (trueFrist)
⑦
exit
③
distance
⑧
exit icon selected/highlighted
④
TVT
⑨
exit icon deselected
⑤
echo
