Commissioning

6.1 Operating via the handheld programmer

SITRANS LR250 (PROFIBUS PA)

Operating Instructions, 01/2014, A5E32221386-AB

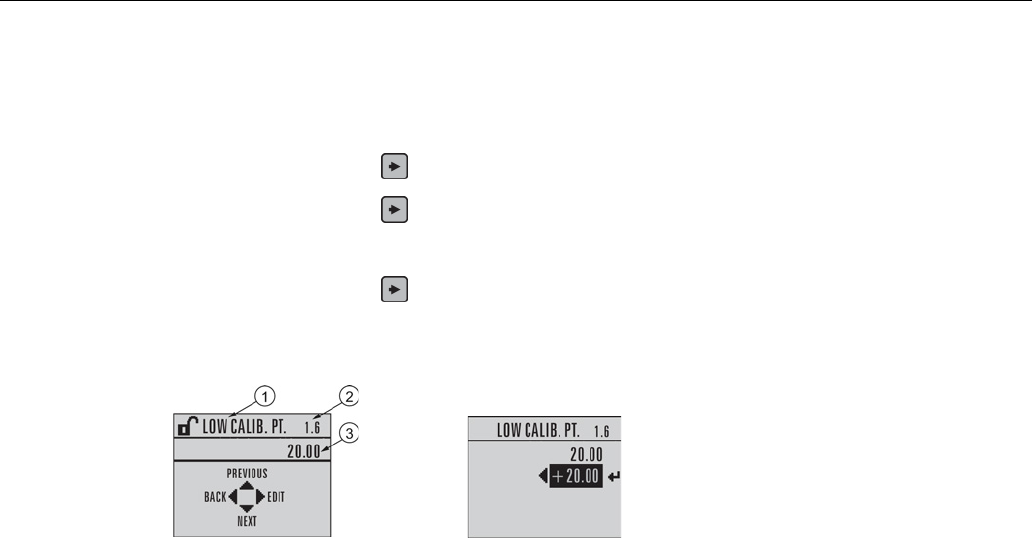

Changing a numeric value

1. Navigate to the desired parameter.

2. Press

RIGHT arrow

to open parameter view. The current value is displayed.

3. Press

RIGHT arrow

again to open

Edit

mode. The current value is highlighted.

4. Key in a new value.

5. Press

RIGHT arrow

to accept it.

The LCD returns to parameter view and displays the new selection.

①

Parameter name

②

Parameter number

③

Current value
