Commissioning

6.1 Operating via the handheld programmer

SITRANS LR250 (PROFIBUS PA)

42 Operating Instructions, 01/2014, A5E32221386-AB

6.1.3.3

Editing in program mode

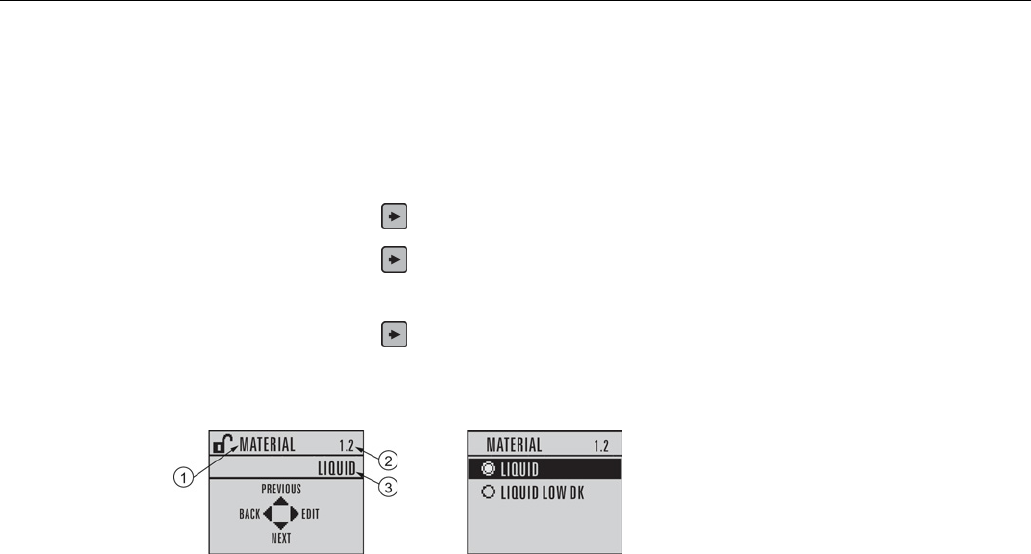

Selecting a listed option

1. Navigate to the desired parameter.

2. Press

RIGHT

arrow

to open parameter view.

3. Press

RIGHT arrow

again to open

Edit

mode. The current selection is highlighted. Scroll

to a new selection.

4. Press

RIGHT arrow

to accept it.

The LCD returns to parameter view and displays the new selection.

①

Parameter name

②

Parameter number

③

Current selection
