Commissioning

6.1 Operating via the handheld programmer

SITRANS LR250 (PROFIBUS PA)

Operating Instructions, 01/2014, A5E32221386-AB

6.1.3.2

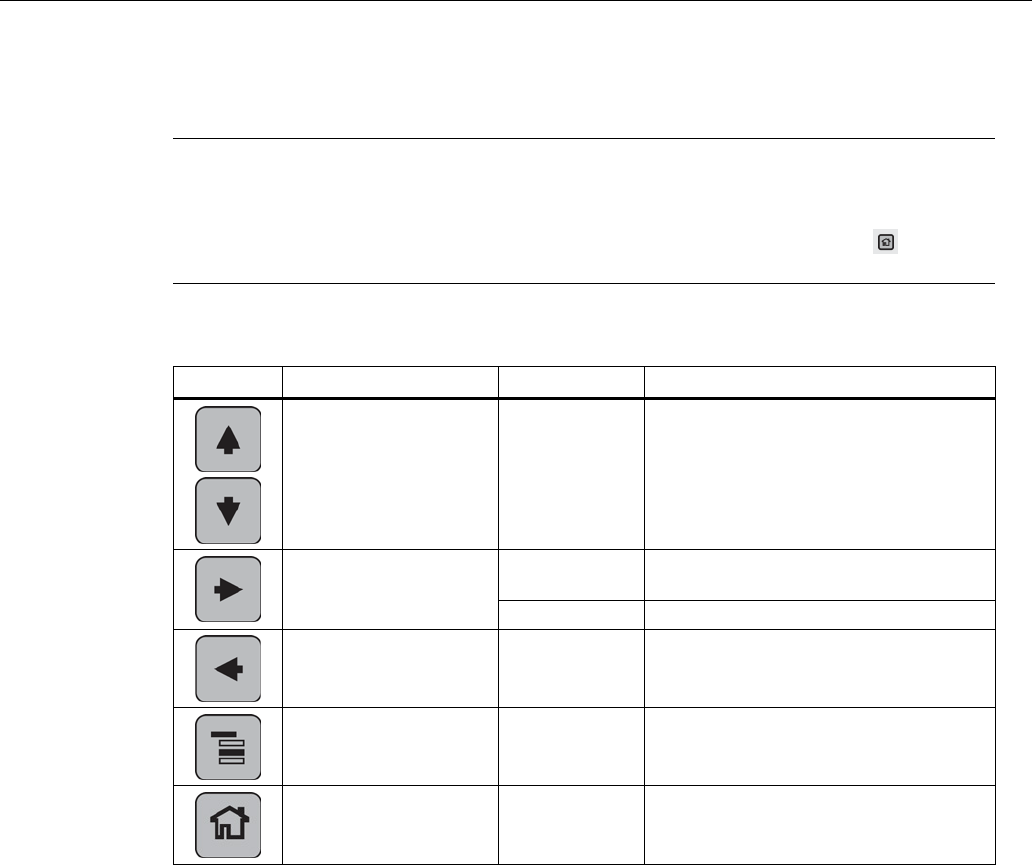

Navigating: key functions in navigation mode

Note

•

In navigation mode

ARROW keys

move to the next menu item in the direction of the

arrow.

•

For Quick Access to parameters via the handheld programmer, press Home , then

enter the menu number, for example:

(2.4.1.) Volume.

Key

Name

Menu level

Function

DOWN arrow

menu or

parameter

Scroll to previous or next menu or

parameter.

RIGHT arrow

menu Go to first parameter in the selected

menu, or open next menu.

parameter

Open Edit mode.

LEFT arrow

menu or

parameter

Open parent menu.

Mode

menu or

parameter

Change to

MEASUREMENT

mode.

Home

menu or

parameter

Open top level menu: menu 1.
