Commissioning

6.1 Operating via the handheld programmer

SITRANS LR250 (PROFIBUS PA)

38 Operating Instructions, 01/2014, A5E32221386-AB

6.1.2.2

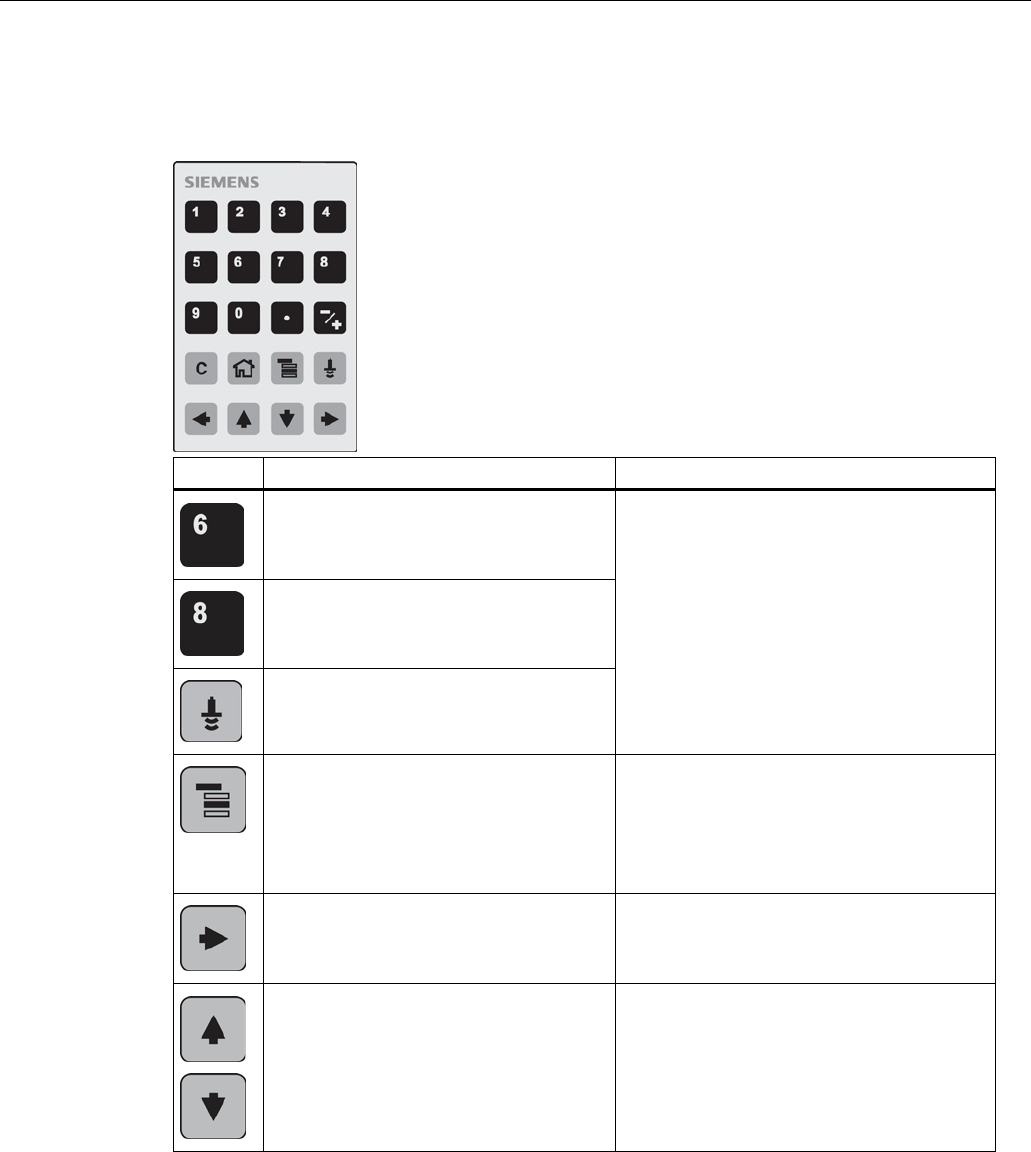

Handheld programmer (Part No. 7ML1930-1BK)

The programmer is ordered separately.

Key

Function

Result

Updates internal enclosure temperature

reading.

New value is displayed in LCD secondary

region.

Updates echo confidence value.

Updates distance measurement

Mode

opens PROGRAM mode Opens the menu level last displayed in this

power cycle, unless power has been cycled

since exiting PROGRAM mode or more than

2 minutes have elapsed since PROGRAM

mode was used. Then top level menu will be

displayed.

RIGHT arrow

opens PROGRAM mode Opens the top level menu.

DOWN

arrow toggles between

AIFB 1 and AIFB 2.

Identifies which AIFB is the source of the

displayed value.
