Connecting

5.3 Wiring setups for hazardous area installations

SITRANS LR250 (PROFIBUS PA)

Operating Instructions, 01/2014, A5E32221386-AB

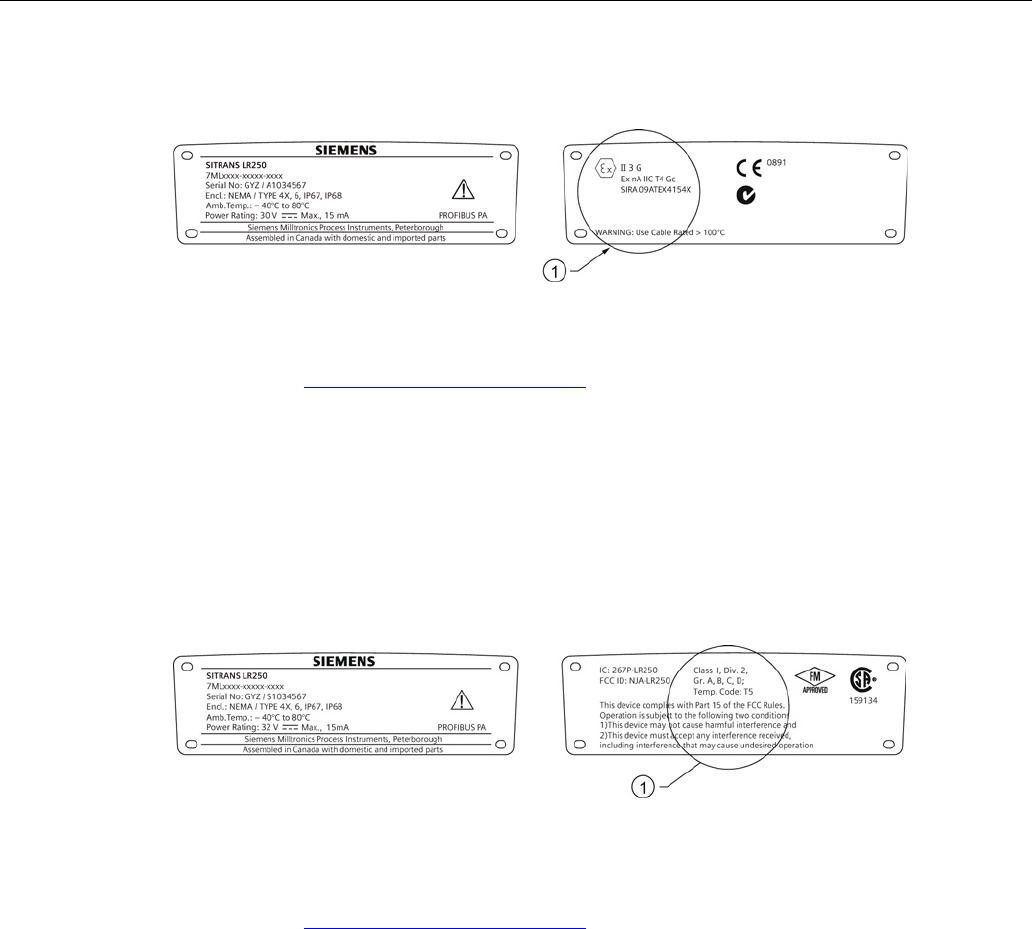

5.3.3

Non-sparking wiring

①

nameplate

The ATEX certificate listed on the nameplate can be downloaded from our website:

Product page (http://www.siemens.com/LR250

)

Go to:

Support > Approvals / Certificates

● For wiring requirements follow local regulations.

● Approved dust-tight and water-tight conduit seals are required for outdoor NEMA 4X / type 4X

/ NEMA 6, IP67, IP68 locations.

5.3.4

Non-incendive wiring (US/Canada only)

①

nameplate

FM/CSA Class 1, Div 2 connection drawing number 23650673 can be downloaded from our

website:

Product page (http://www.siemens.com/LR250

)

Go to

Support > Installation Drawings > Level Measurement > SITRANS LR250.

● For wiring requirements: follow local regulations.

● Approved dust-tight and water-tight conduit seals are required for outdoor NEMA 4X / type 4X

/ NEMA 6, IP67, IP68 locations.

● Refer to Instructions specific to hazardous area installations (Page 34).
