Connecting

5.3 Wiring setups for hazardous area installations

SITRANS LR250 (PROFIBUS PA)

Operating Instructions, 01/2014, A5E32221386-AB

5.3.1

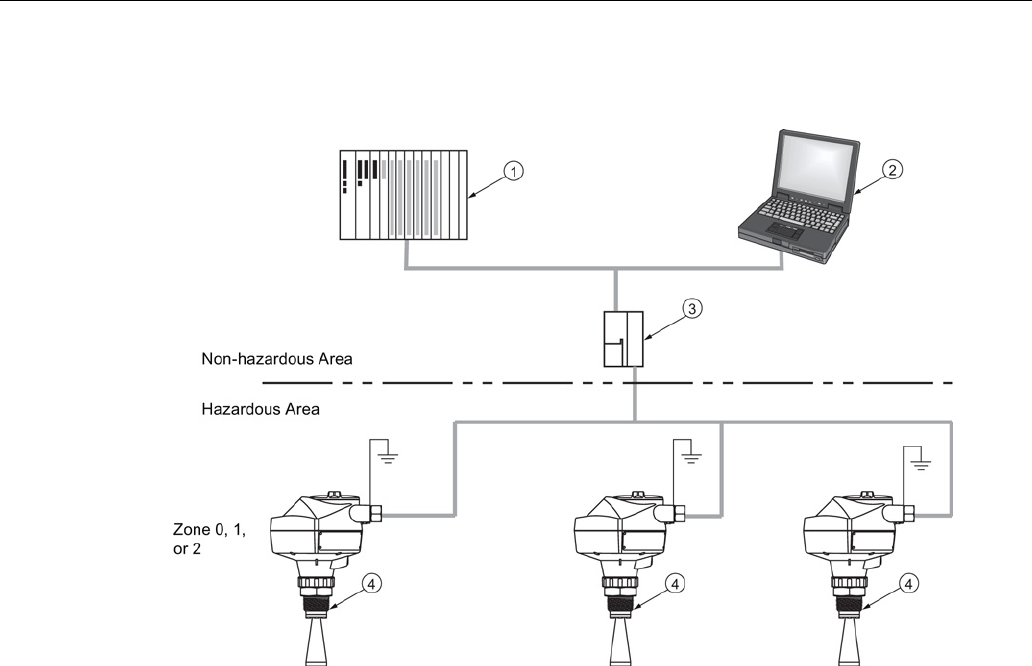

PLC configuration with PROFIBUS PA for hazardous areas

①

PLC (active)

②

PC/laptop

③

EEx ia type DP/PA coupler

④

EEx ia device
