Installing/mounting

4.2 Mounting location

SITRANS LR250 (PROFIBUS PA)

20 Operating Instructions, 01/2014, A5E32221386-AB

4.2.3

Orientation in a vessel with obstructions

Polarization reference point

For best results on a vessel with obstructions, or a stillpipe with openings, orient the front or

back of the device toward the obstructions. For an illustration, see Device orientation (Page 21).

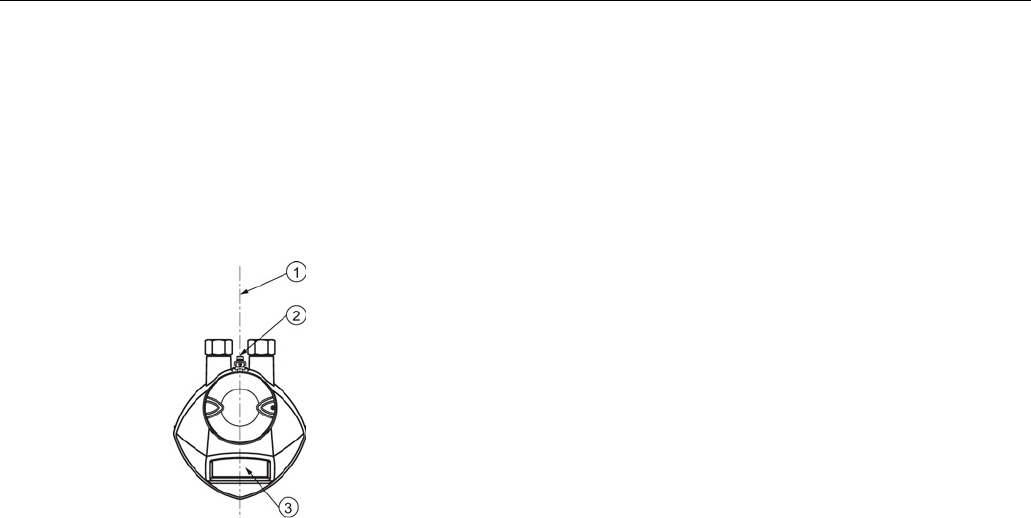

①

Polarization axis

②

Polarization reference point

③

Display

4.2.4

Mounting on a Stillpipe or Bypass Pipe

A stillpipe or bypass pipe is used for products with a low dK, or when vortex or extremely

turbulent conditions exist. It can also be used to provide optimum signal conditions on foaming

materials. See Dielectric constant of material measured in Performance (Page 170) for more

information.
