Installing/mounting

4.2 Mounting location

SITRANS LR250 (PROFIBUS PA)

Operating Instructions, 01/2014, A5E32221386-AB

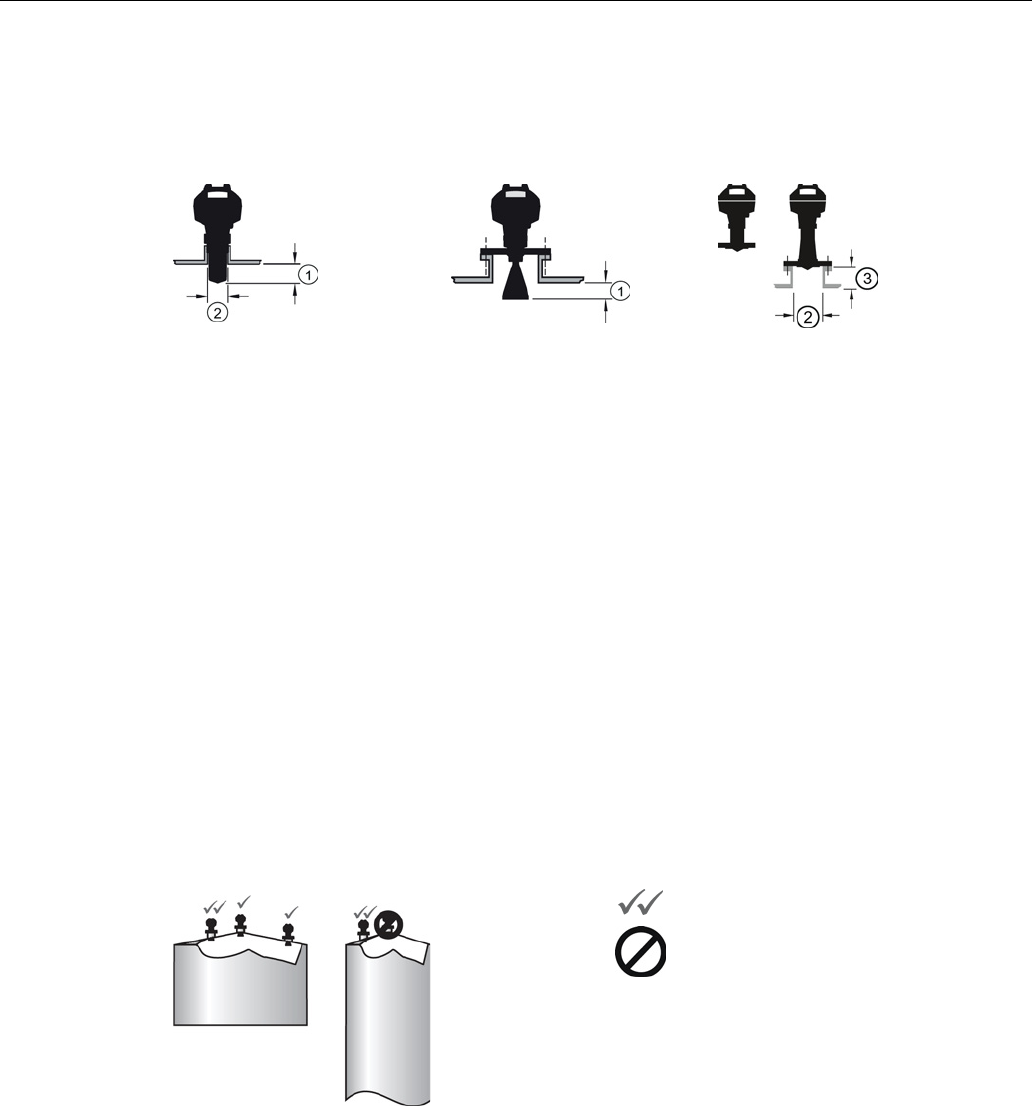

4.2.1

Nozzle design

Threaded PVDF antenna

Stainless steel horn antenna

Flanged encapsulated antenna

①

Minimum clearance: 10 mm (0.4")

②

Minimum diameter: 50 mm (2")

③

Maximum nozzle length: 500

mm (20")

● The end of the antenna must protrude a minimum of 10 mm (0.4") to avoid false echoes

being reflected from the nozzle

● Minimum recommended nozzle diameter for the threaded PVDF antenna is 50 mm (2").

● An antenna extension (100 mm/3.93") is available for any version except the Threaded PVDF

and Flanged encapsulated antenna (FEA).

● The maximum nozzle length for the FEA is 500 mm (20").

Not applicable for FEA

4.2.2

Nozzle location

● Avoid central locations on tall, narrow vessels

● Nozzle must be vertical

Preferre

Unde

sirable
