SITRANS LR250 (PROFIBUS PA)

Operating Instructions, 01/2014, A5E32221386-AB

Description

3.1

SITRANS LR250 overview

WARNING

SITRANS LR250 is to be used only in the manner outlined in this manual, otherwise

protection provided by the device may be impaired.

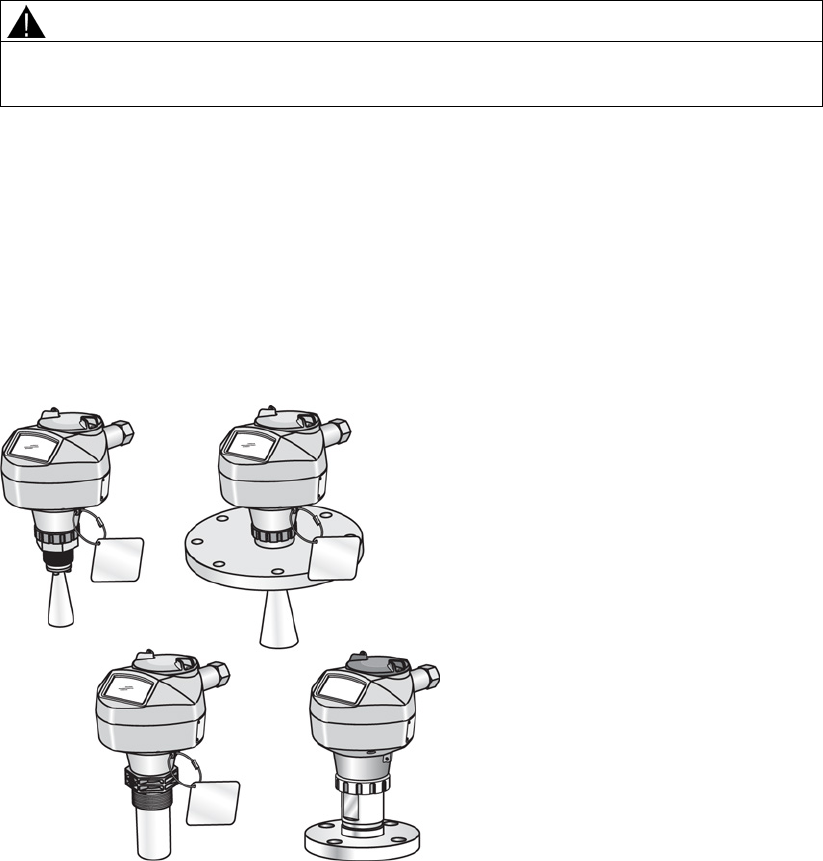

SITRANS LR250 is a 2-wire 25 GHz pulse radar level transmitter for continuous monitoring of

liquids and slurries in storage vessels including high pressure and high temperature, to a range

of 20 meters (66 feet). It is ideal for small vessels and low dielectric media.

The device consists of an electronic circuit coupled to an antenna and either a threaded or

flange type process connection.

This device supports PROFIBUS PA communication protocol, and SIMATIC PDM software.

Signals are processed using Process Intelligence which has been field-proven in over 1,000,000

applications worldwide (ultrasonic and radar). This device supports acyclic communications from

both a PROFIBUS Class I and Class II master.
