7.1.10.3
Setup (LCD)

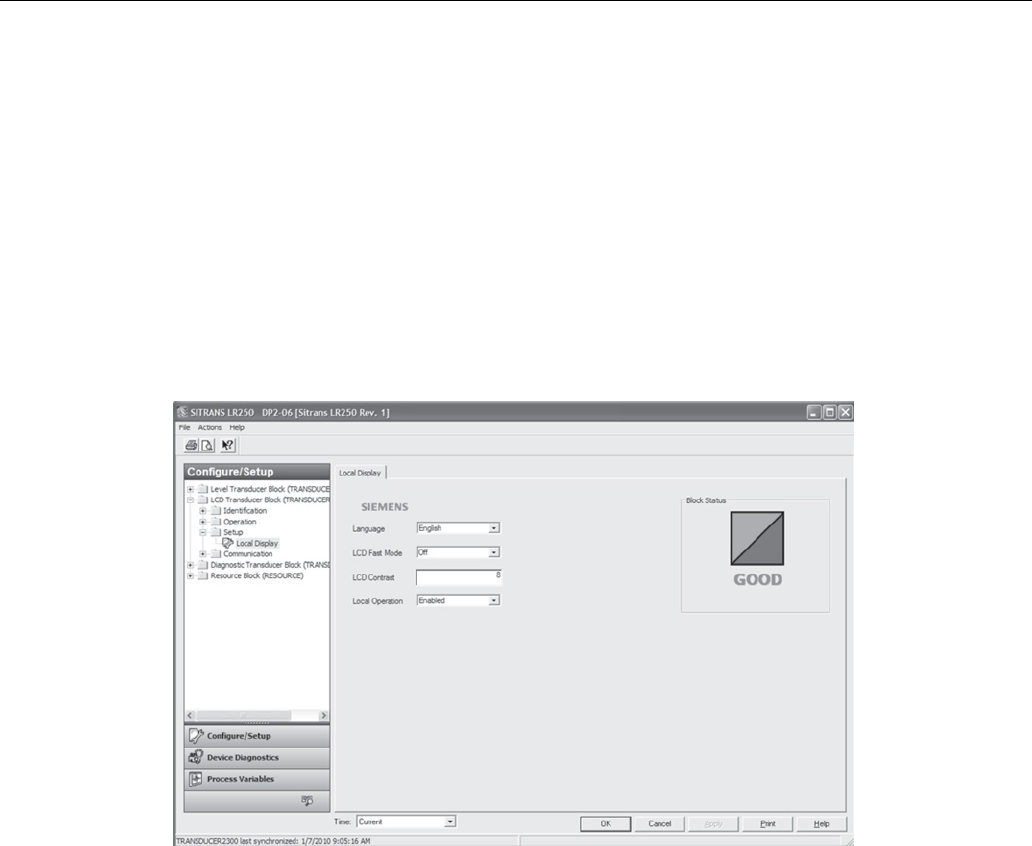

Navigate to
Configure/Setup > LCD > Setup > Local display
for access to:
Local Display
Language [see
Language (7.)
]
LCD Fast Mode [see
LCD Fast Mode (4.9.)
]
LCD Contrast [see
LCD Contrast
(4.10.)
]
Local Operation [see
Local Operation (6.2.3.)
]
If local operation is disabled remotely and no communication activity exists for 30 seconds, the
parameter is made visible again locally.
7.1.10.4
Communication (LCD)
Navigate to
Configure/Setup > LCD > Communication
for access to:
Communication:
● Static Revision No. [See
Static Revision Number (2.6.1.)
]
