Remote operation
7.1 Operating via AMS Device Manager
SITRANS LR250 (FOUNDATION FIELDBUS)
92 Operating Instructions, 01/2014, A5E32221411-AB
7.1.9.7
Communication (LTB)

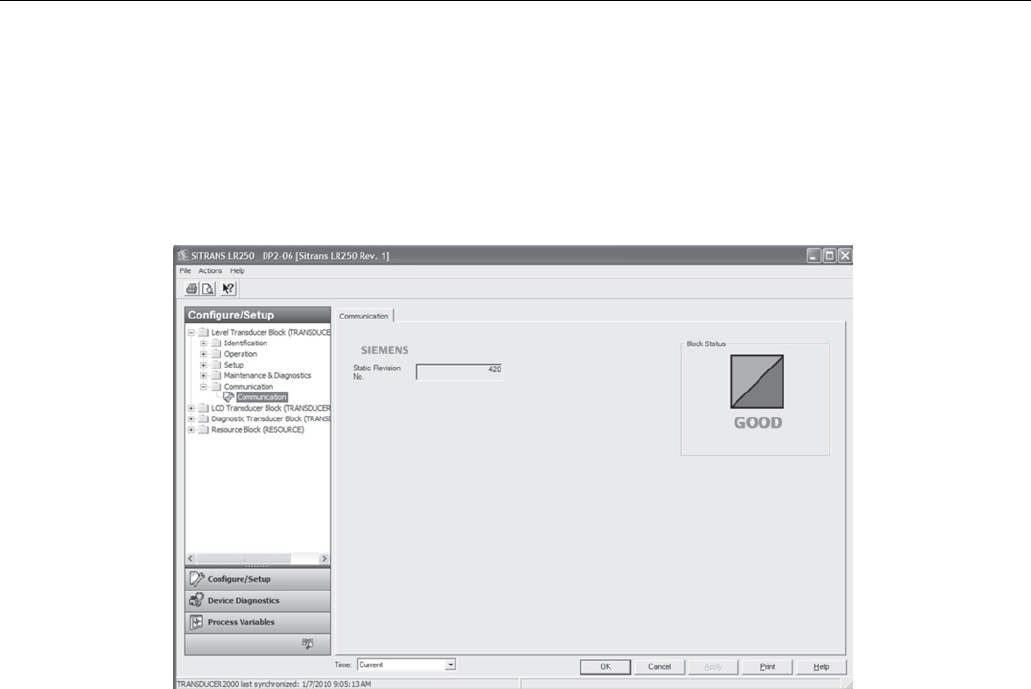

Navigate to
Configure/Setup > LTB > Communication
for access to:
Communication:
● Static Revision No. [see
Static Revision Number (2.6.1.)
]
