Remote operation
7.1 Operating via AMS Device Manager
SITRANS LR250 (FOUNDATION FIELDBUS)
90 Operating Instructions, 01/2014, A5E32221411-AB

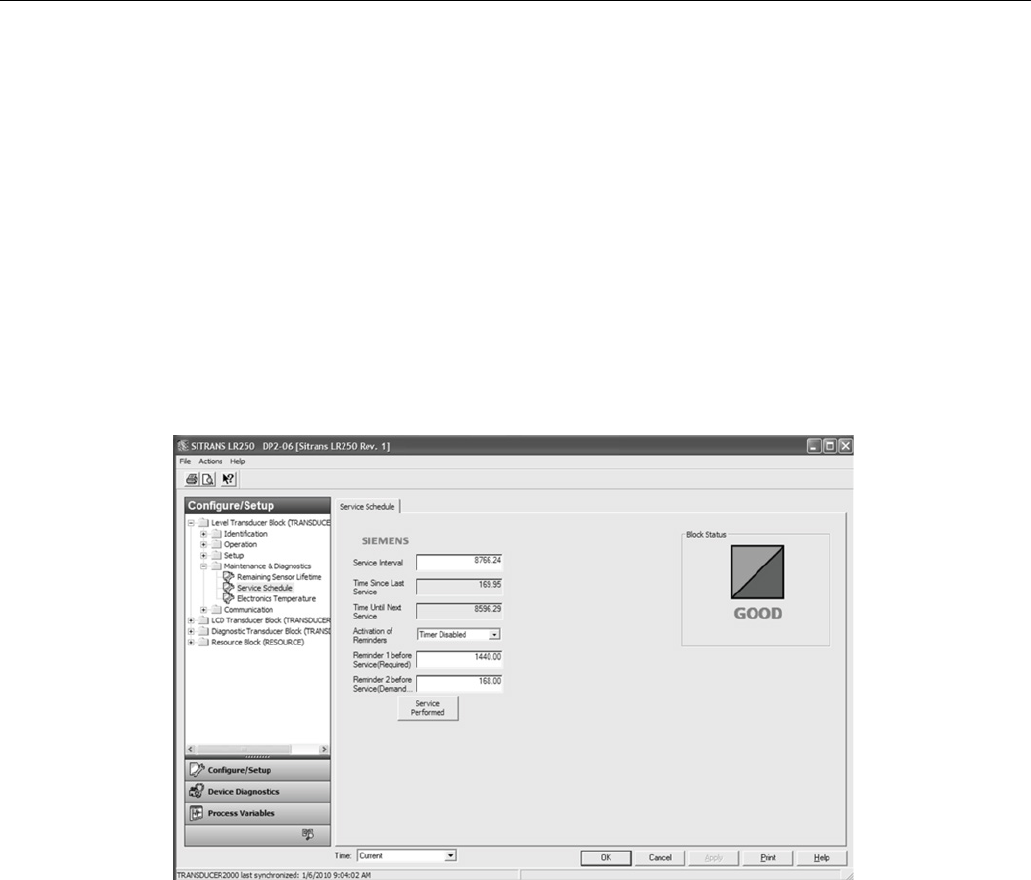

Service Schedule
[see
Service Schedule (4.4.)
]
● Service Interval [see
Service Interval (4.4.1.)
]
● Time Since Last Service [see
Time Since Last Service (4.4.2.)
]
● Time Until Next Service [see
Time Until Next Service (4.4.3.)
]
● Activation of Reminders [see
Activation of Reminders (4.4.4.)
]
● Reminder 1 before Lifetime (Required) [see
Reminder 1 before Service (Required) (4.4.5.)
]
● Reminder 2 before Lifetime (Demanded) [see
Reminder 2 before Service (Demanded)
(4.4.6.)
]
● Click on
Service Performed
to reset Time Since Last Service to 0 hours
