Remote operation
7.1 Operating via AMS Device Manager
SITRANS LR250 (FOUNDATION FIELDBUS)
88 Operating Instructions, 01/2014, A5E32221411-AB

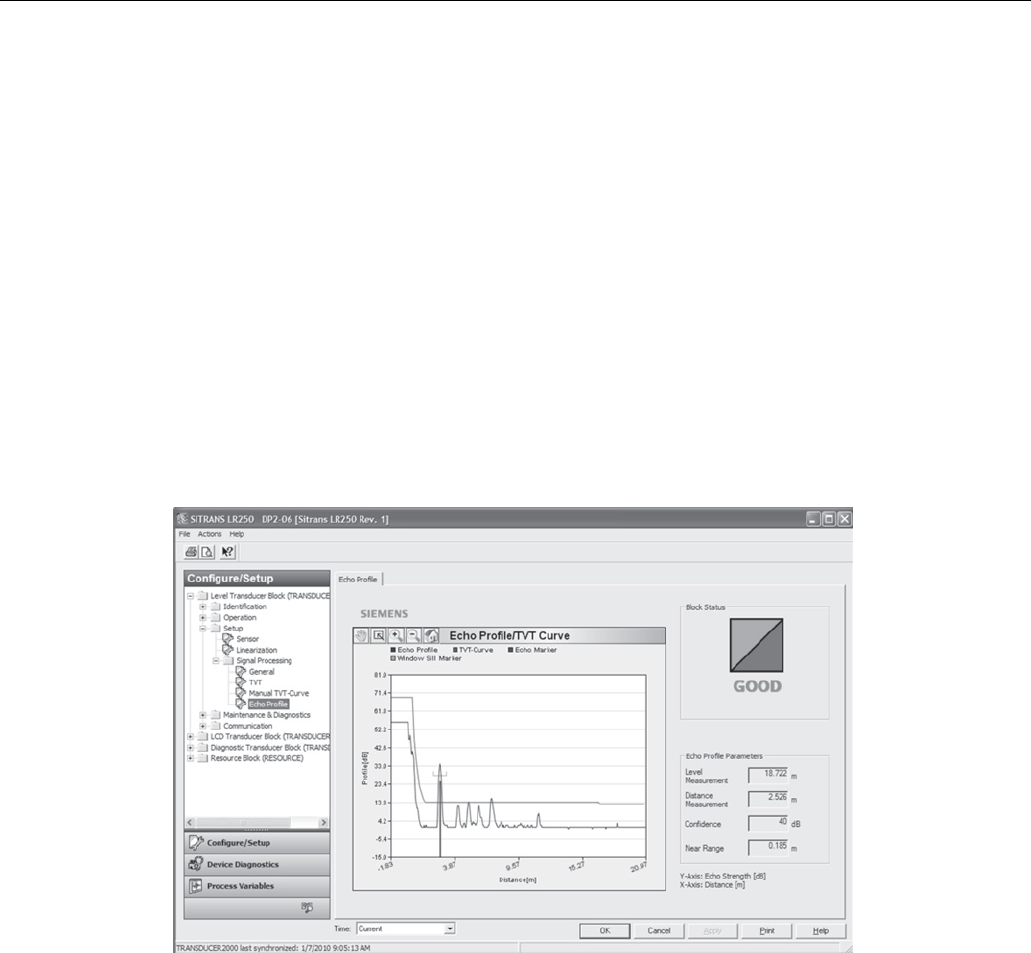

Echo Profile
Displays the current echo profile.
Navigate to
Configure/Setup > LTB > Setup > Signal Processing
and click on
Echo Profile
to
view the current echo profile and to access:
Echo Profile Parameters
[see
Echo Profile (3.1.)
]
● Level Measurement [see
Measured Values (2.8)
]
● Distance Measurement [see
Measured Values (2.8.)
]
● Confidence [see
Confidence (2.5.9.1.)
]
● Near Range (see
(Near Range 2.5.1.)
]
To view a previous profile, click the drop-down arrow on the
Time
field and select the desired
profile (note: available only using AMS version 10.1or later).
