Remote operation
7.1 Operating via AMS Device Manager
SITRANS LR250 (FOUNDATION FIELDBUS)
80 Operating Instructions, 01/2014, A5E32221411-AB
7.1.9.3
Setup (LTB)

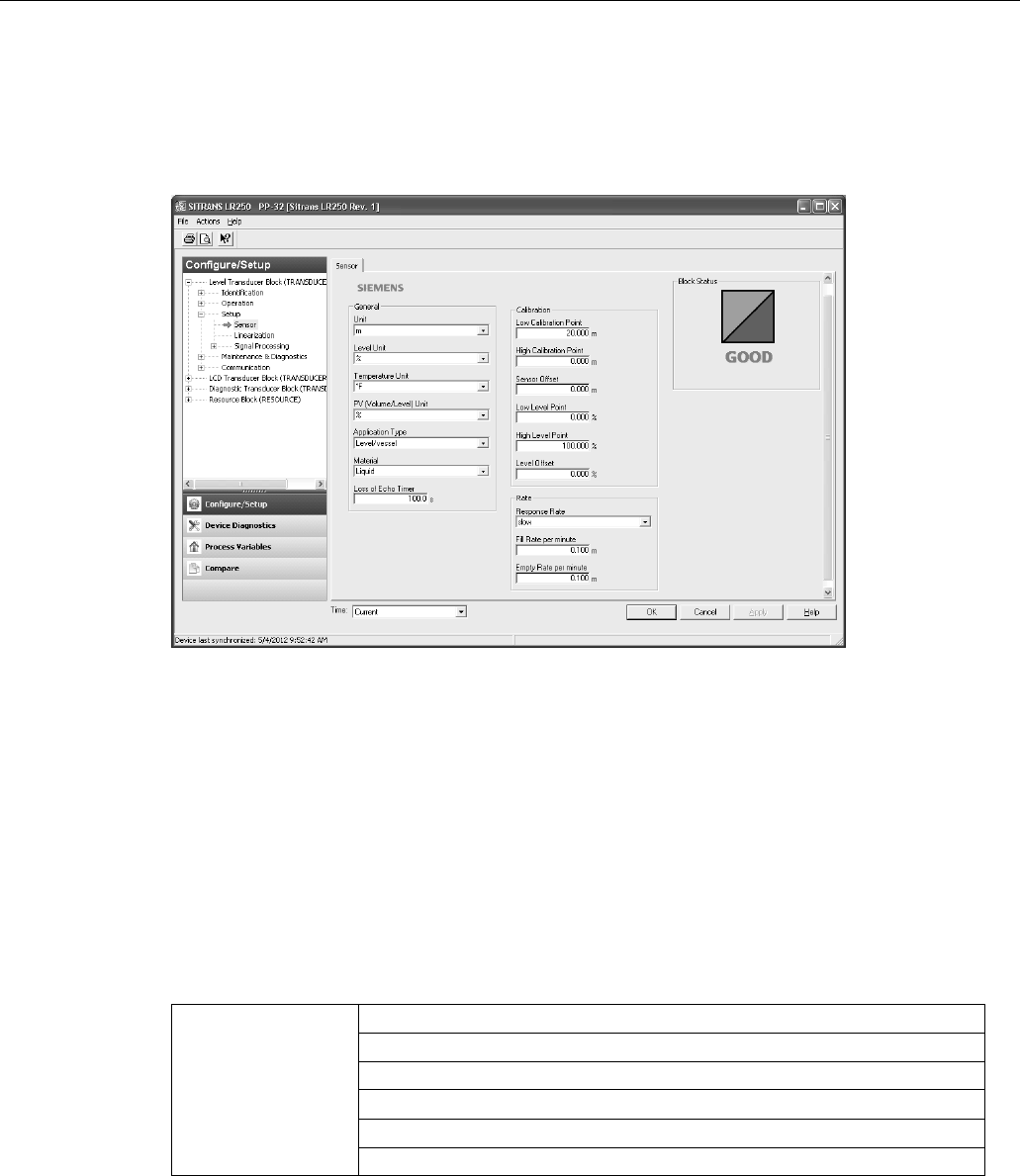

Sensor (LTB)
Navigate to
Configure/Setup > LTB > Setup
and click on
Sensor
for access to:
General
[see
Sensor (2.3.)
for details]
● Unit [see
Unit (2.3.1.)
]
● Level Unit [see
Level Unit (2.3.2.)
]
● Temperature Unit [see
Temperature Units (2.3.4.)
]
● PV (Volume/Level) Unit [see
PV (volume/level) Units (2.3.3.)
]
● Application Type (available only via AMS Device Manager)
Defines the application type.
Values
Level/vessel (default)
Level/stillpipe
Level/bypass pipe
Volume/vessel
Volume/stillpipe
Volume/bypass pipe
