Remote operation
7.1 Operating via AMS Device Manager
SITRANS LR250 (FOUNDATION FIELDBUS)
Operating Instructions, 01/2014, A5E32221411-AB
79

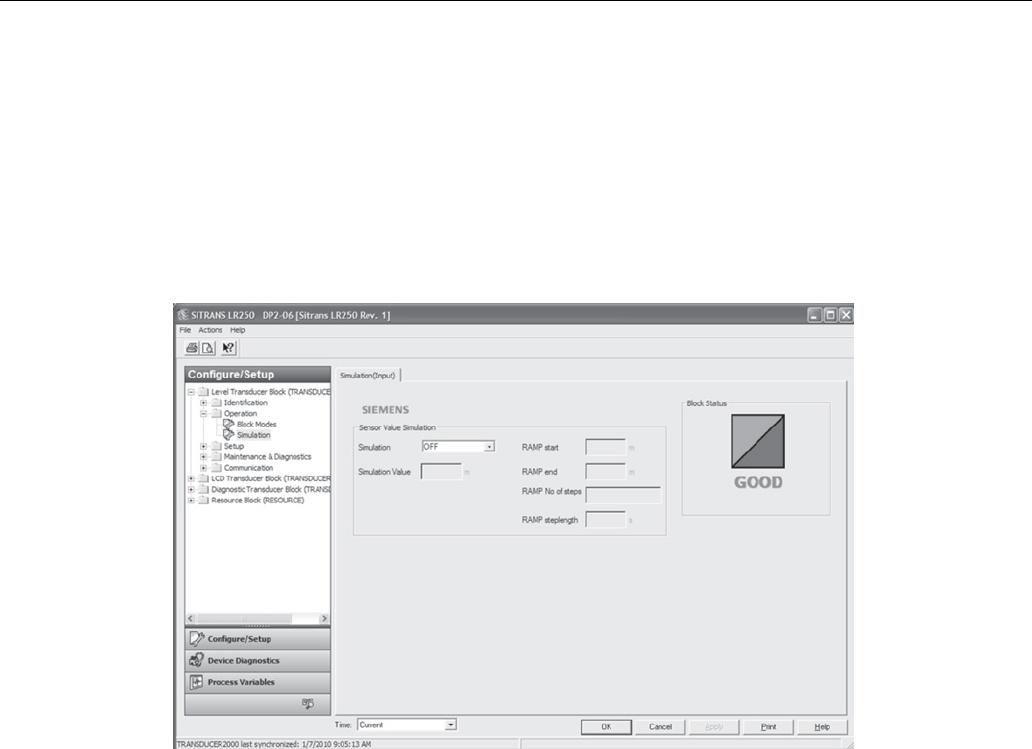

● Simulation
● Simulation Value
● RAMP start
● RAMP end
● RAMP No of steps
● RAMP steplength
1. To enable simulation select
Fixed value
or
Ramp
in the Simulation field.
2. If you select Fixed value, enter a Simulation Value.
3. If you select Ramp, enter the ramp start, end, number of steps, and steplength.
4. Click
Apply
.
5. After simulation is complete, set Simulation to
OFF
and click
Apply
.
