Remote operation
7.1 Operating via AMS Device Manager
SITRANS LR250 (FOUNDATION FIELDBUS)
Operating Instructions, 01/2014, A5E32221411-AB
75

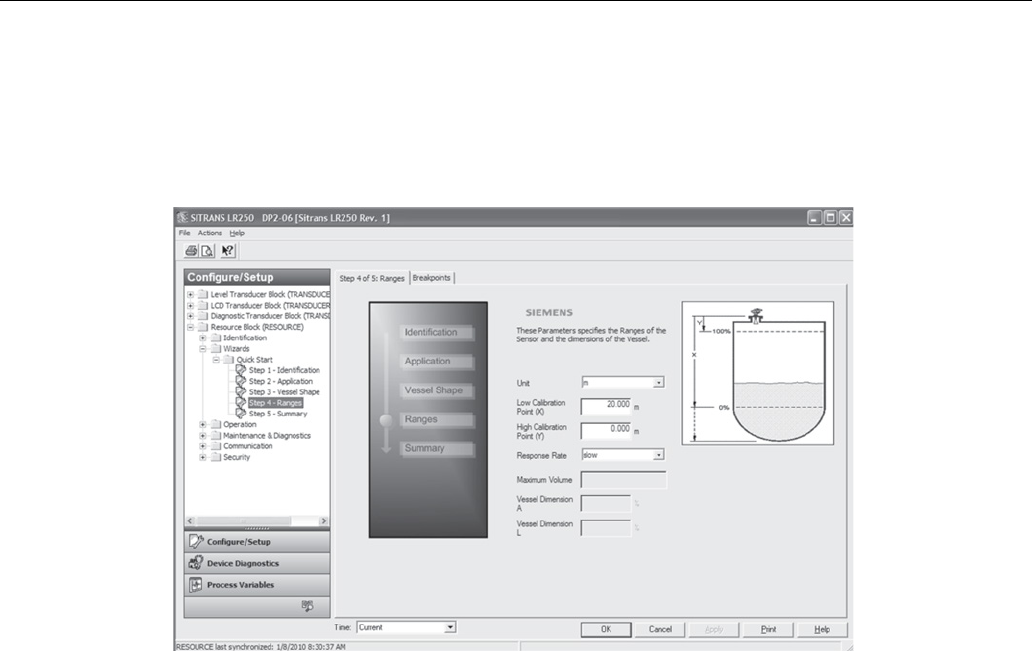

Step 4 - Ranges
Click on
Step 4 - Ranges
in the navigation window. On the tab Step 4 of 5 Ranges: set the
parameters, and click on
Apply
to save settings. If necessary, click on the Breakpoints tab, set
the parameters, and click on
Apply
to save settings. Go to Step 5.
