Remote operation
7.1 Operating via AMS Device Manager
SITRANS LR250 (FOUNDATION FIELDBUS)
74 Operating Instructions, 01/2014, A5E32221411-AB

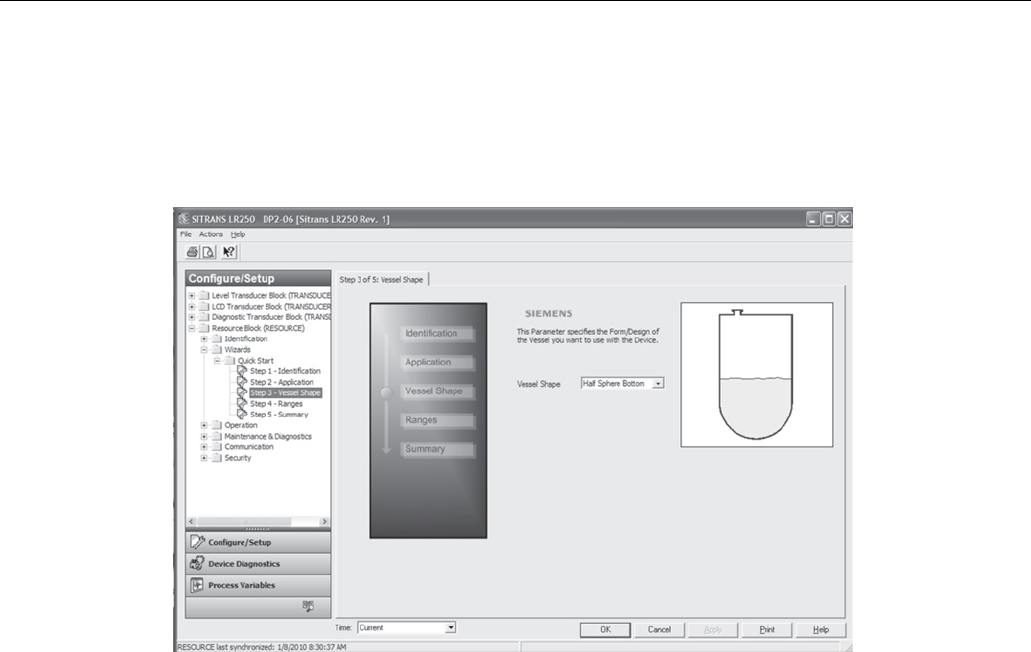

Step 3 - Vessel Shape
Click on
Step 3 - Vessel Shape
in the navigation window. Select the vessel shape. To describe a
more complex shape, select
Linearization Table
in the Vessel Shape field and see Linearization
(LTB) (Page 82
) for more details. Click on
Apply
to save settings then go to Step 4.
