Remote operation
7.1 Operating via AMS Device Manager
SITRANS LR250 (FOUNDATION FIELDBUS)
Operating Instructions, 01/2014, A5E32221411-AB
73

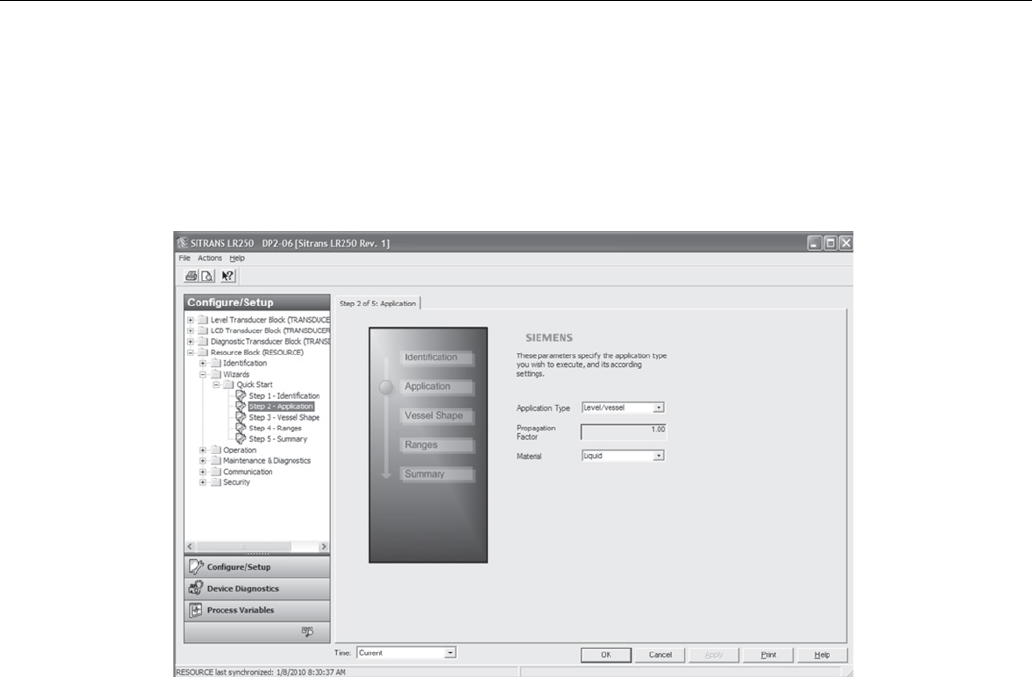

Step 2 - Application Type
Click on
Step 2 - Application Type
in the navigation window. Select the Application Type (level or
volume), Propagation Factor (if using a stillpipe application), and the Material. For a Low
Dielectric Liquid application in a stilling well, see example
Application with Stillpipe (Page 60).
Click on
Apply
to save settings then go to Step 3.
