Remote operation
7.1 Operating via AMS Device Manager
SITRANS LR250 (FOUNDATION FIELDBUS)
72 Operating Instructions, 01/2014, A5E32221411-AB

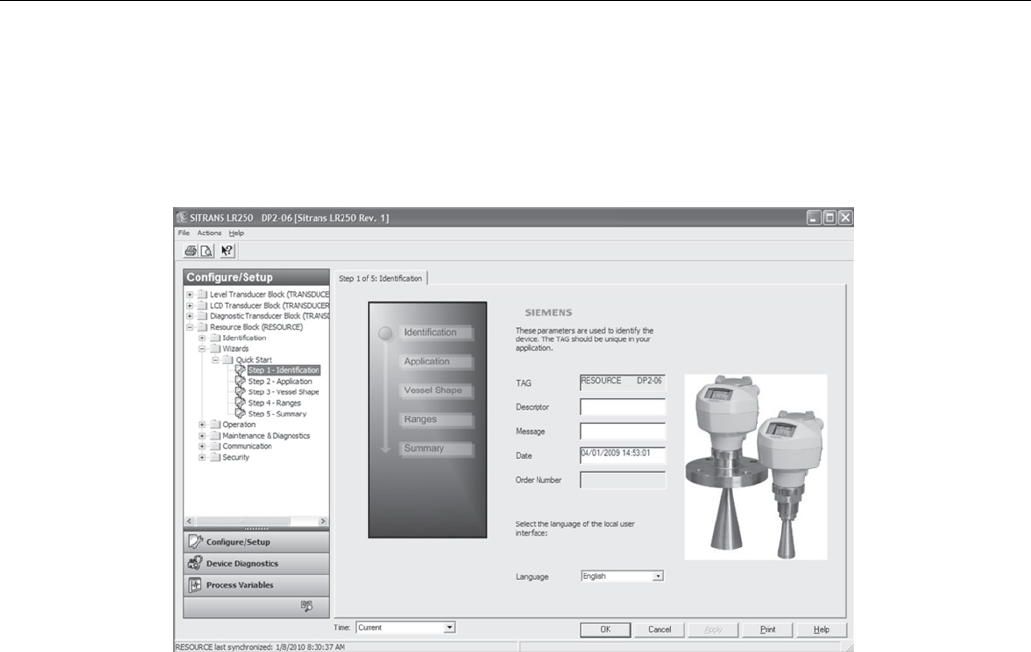

Step 1 - Identification
You can accept the default values without modification. (Descriptor, Message, and Installation
Date
fields can be left blank.) If desired, make changes then click on
Apply
. (The
Apply
button is
activated when a parameter is modified.) Go to Step 2.
