Remote operation
7.1 Operating via AMS Device Manager
SITRANS LR250 (FOUNDATION FIELDBUS)
Operating Instructions, 01/2014, A5E32221411-AB
69
7.1.4
Master Reset
A master reset is recommended before first configuring a new device. (Block Status must be Out
of Service to perform a Master Reset.)

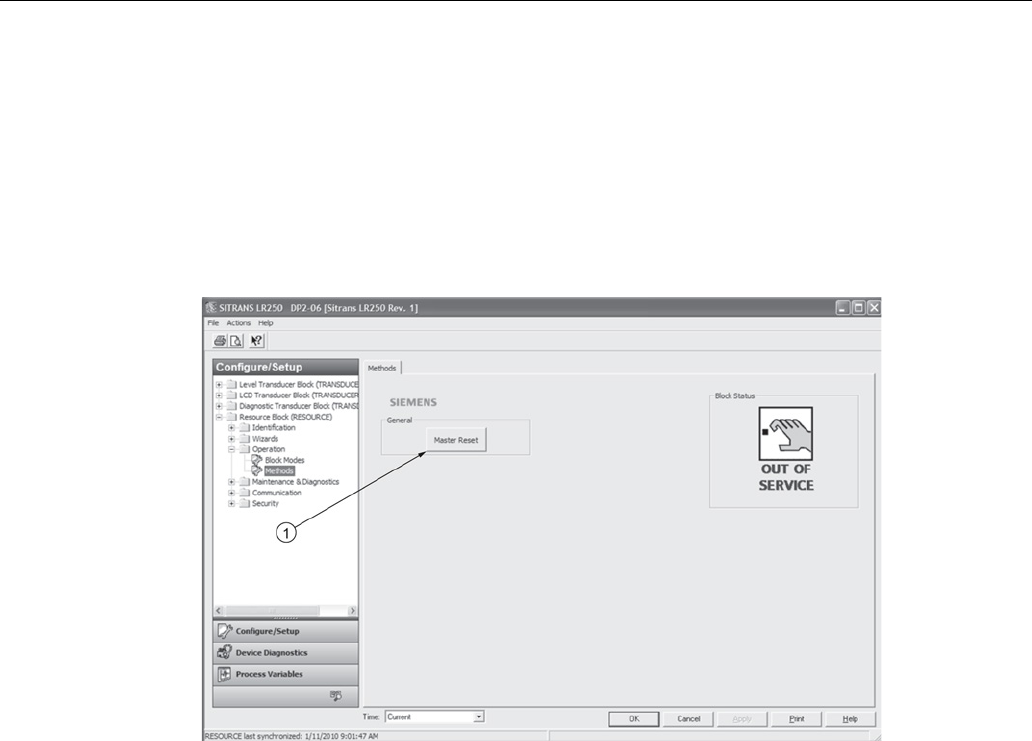

1. Navigate to
Configure/Setup > Resource > Operation > Methods
and click to open the dialog
window.
2. In the
General
field, click on
Master Reset
and click Next to perform reset to factory defaults.
Click Next to accept default reset to
Factory Defaults
.
①
Master Reset
3. Click FINISH then restart AMS to reload settings. Next, scan the device.
7.1.5
Scan Device
Scan Device uploads parameters from the device (synchronizes parameters) to AMS Device
Manager.
1. Open the pull-down menu
Actions – Scan Device
(upload parameters from the device to
AMS).
2. The next step when adding a new device is to configure and calibrate the device via the
Quick Start Wizard.
