Remote operation
7.1 Operating via AMS Device Manager
SITRANS LR250 (FOUNDATION FIELDBUS)
64 Operating Instructions, 01/2014, A5E32221411-AB

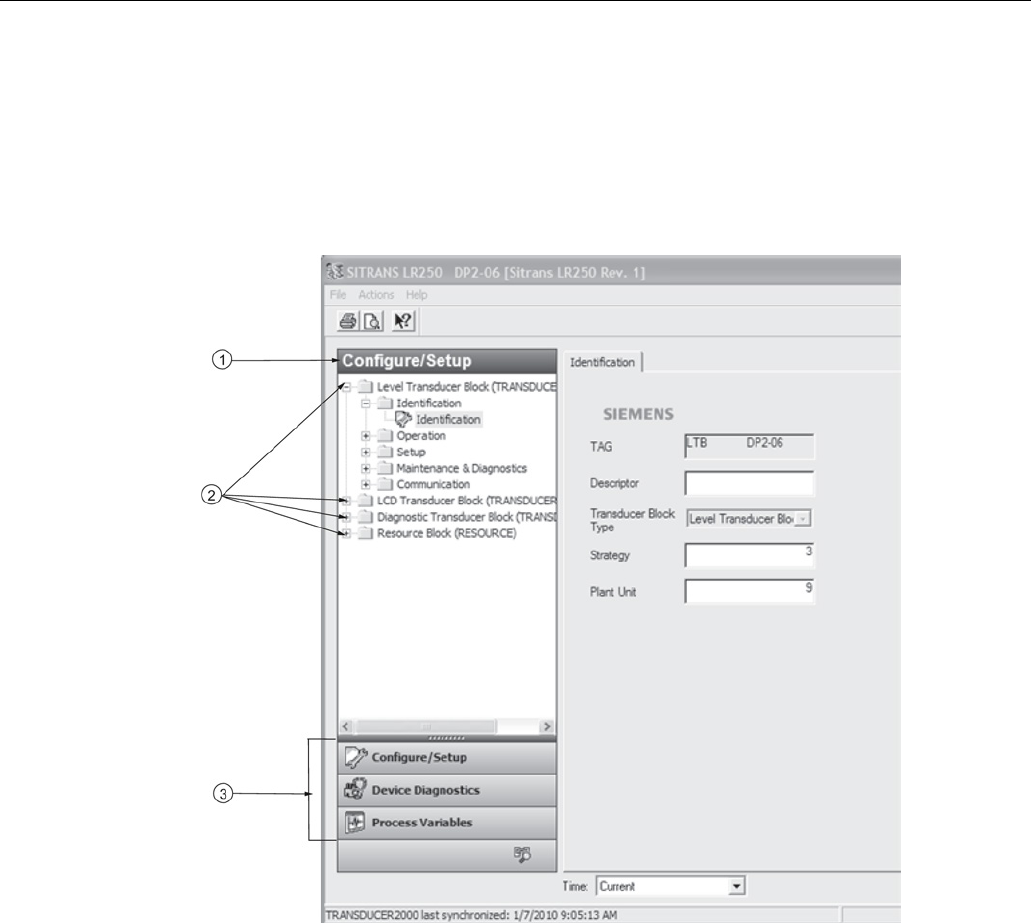

Each function group is further divided into four blocks:
● Level Transducer Block (LTB)
● Liquid Crystal Display Block (LCD)
● Diagnostic Block (DIAG)
● Resource Block (RESOURCE)
①
Active function group
②
Blocks within each function group
③
Functions groups available
In general, process parameters are accessed through the Level Transducer Block, and device
parameters are accessed through the Resource Block.
See AMS Menu Structure (Page 117) for a chart, and Changing parameter settings using AMS
Device Manager (Page 76) for more details.
