Commissioning
6.1 Operating via the handheld programmer
SITRANS LR250 (FOUNDATION FIELDBUS)
48 Operating Instructions, 01/2014, A5E32221411-AB
6.1.3.1
Quick Start Wizard via the handheld programmer_note
Note
•
A reset to factory defaults should be performed before running the Quick Start Wizard if
the device has been used in a previous application. See
Master Reset (4.1.)
.
•
The Quick Start wizard settings are inter-related and changes apply only after you select
Finish
in the Wizard Complete step.
•
Do not use the Quick Start wizard to modify parameters: see instead Parameter
reference (Page 129). (Perform customization for your application only after the Quick
Start has been completed).
•
Default settings in the parameter tables are indicated with an asterisk (*).

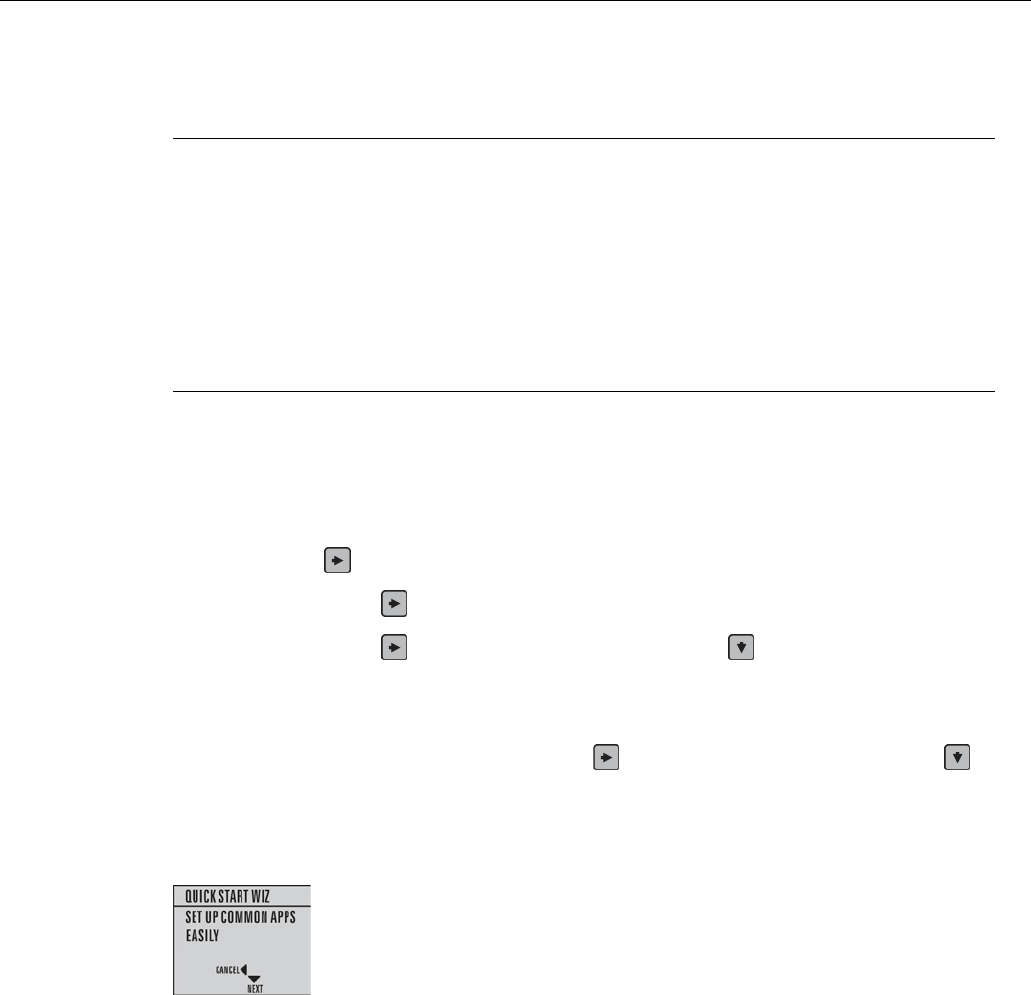

1. Quick Start
1.1. Quick Start Wiz
1. Point the programmer at the display from a maximum distance of 300 mm (1 ft), then press
RIGHT arrow
to activate PROGRAM mode and open menu level 1.
2. Press
RIGHT arrow
twice to navigate to menu item 1.1 and open parameter view.
3. Press
RIGHT arrow
to open Edit mode or
DOWN arrow
to accept default values and
move directly to the next item.
4. To change a setting, scroll to the desired item or key in a new value.
5. After modifying a value, press
RIGHT arrow
to accept it and press
DOWN arrow
to
move to the next item.
6. Quick Start settings take effect only after you select
Finish.
