Commissioning
6.1 Operating via the handheld programmer
SITRANS LR250 (FOUNDATION FIELDBUS)
44 Operating Instructions, 01/2014, A5E32221411-AB

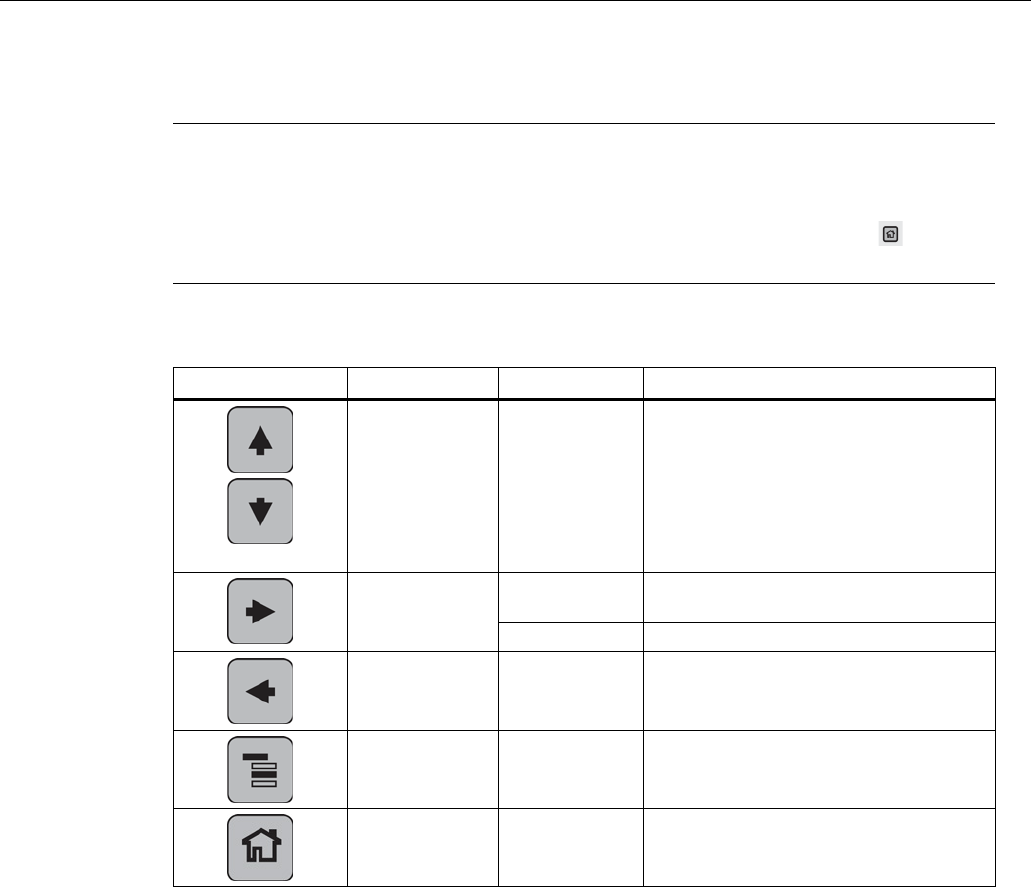

2. Navigating: key functions in Navigation mode
Note
•
In Navigation mode
ARROW
keys move to the next menu item in the direction of the
arrow.
•
For Quick Access to parameters via the handheld programmer, press Home , then
enter the menu number, for example:
Volume (2.4.1.), press 2.4.1.
Key
Name
Menu level
Function
UP
or
DOWN
arrow
menu or
parameter
Scroll to previous or next menu or
parameter
RIGHT arrow
menu Go to first parameter in the selected
menu, or open next menu.
parameter
Open Edit mode.
LEFT arrow
menu or
parameter
Open parent menu.
Mode
menu or
parameter
Change to
MEASUREMENT
mode.
Home
menu or
parameter
Open top level menu: menu 1.
